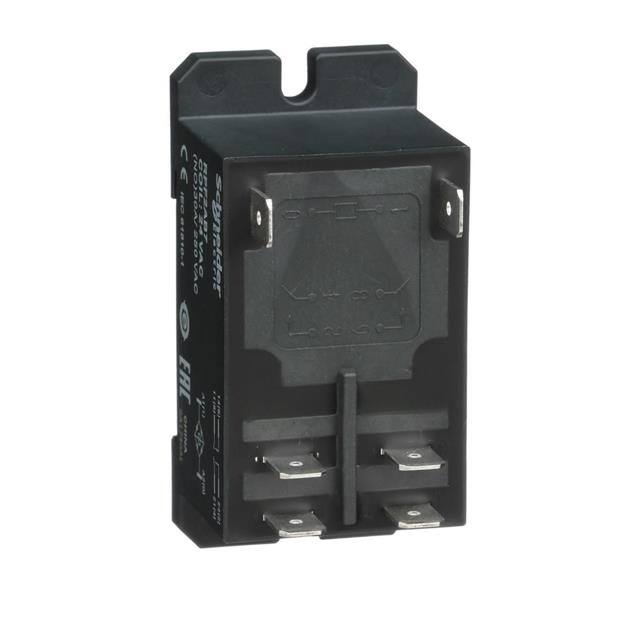

RPF2AB7
Or copy the link below:
- Mfr.Part #
- RPF2AB7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, POWER RELAY, DIN RAIL/P
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Product Status :
- Active
- Depth :
- 39.2
- Operate Time :
- 25 ms
- Seal Rating :
- -
- Contact Rating (Current) :
- 25 A
- Number of contacts as change-over contact :
- 0
- Contact Termination :
- Quick Connect
- Standards Met :
- CE, CSA, EN/IEC, GOST, IEC, UL
- Number of Poles :
- 2
- Coil Resistance :
- 170 Ohms
- Material of contact surface :
- Other
- Degree of protection (IP) :
- IP40
- Coil Voltage :
- 24VAC
- Length :
- 33.7mm
- IP Rating :
- IP40
- Product Category :
- Industrial Relays
- Product Type :
- Industrial Relays
- Must Operate Voltage :
- -
- Contact Form :
- DPST-NO (2 Form A)
- Relay Type :
- GENERAL PURPOSE
- Termination Style :
- Quick Connect - Multiple Sizes
- Release Time :
- 25 ms
- Manufacturer :
- Schneider Electric
- Rated control supply voltage at AC 50 Hz :
- 24 - 24
- Subcategory :
- Relays
- Switching Voltage :
- 250VAC, 28VDC - Max
- Voltage type for actuating :
- AC
- Mounting Type :
- Chassis Mount
- Type of electric connection :
- Flat plug-in connection
- Material contact :
- Other
- Switching Current :
- 30A
- Features :
- -
- Terminal Type :
- Plug In
- Series :
- Harmony
- Nominal current :
- 30
- Coil Current :
- 141.2 mA
- Operating Temperature :
- -40°C ~ 55°C
- Must Release Voltage :
- 3.6 VAC
- Number of contacts as normally closed contact :
- 0
- Coil Termination :
- Quick Connect
- Package :
- Box
- RoHS :
- Details
- Contact Material :
- Silver Tin Oxide (AgSnO)
- Height :
- 68.5
- Mounting Style :
- DIN Rail Mount
- Coil Type :
- Non Latching
- Number of contacts as normally open contact :
- 2
- Type :
- Harmony Relay
- Coil Insulation :
- -
- With detachable clamps :
- yes
- Contact Configuration :
- DPST
- Contact Current Rating :
- 30 A
- Product :
- Power Relays
- Rated control supply voltage at AC 60 Hz :
- 24 - 24
- Brand :
- Schneider Electric
- Width :
- 33.7
- Datasheets
- RPF2AB7
RPF2AB7 datasheet pdf and Power Relays, Over 2 Amps product details from Schneider Electric stock available at
