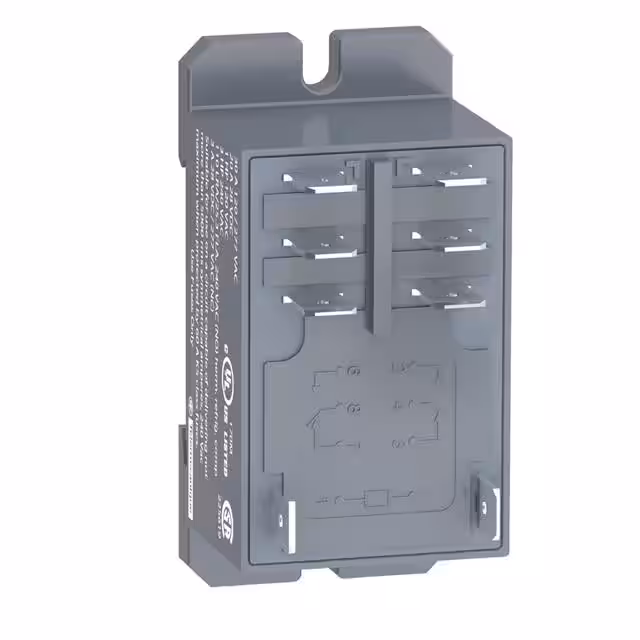

RPF2BJD
Or copy the link below:
- Mfr.Part #
- RPF2BJD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, POWER RELAY, DIN RAIL/P
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Contact Form :
- DPDT (2 Form C)
- Features :
- -
- Product Status :
- Active
- Rated control supply voltage at DC :
- 12 - 12
- Subcategory :
- Relays
- Depth :
- 39.2
- Material of contact surface :
- Other
- Operating Temperature :
- -40°C ~ 55°C
- Material contact :
- Other
- Contact Rating (Current) :
- 25 A
- Number of contacts as normally open contact :
- 0
- Switching Current :
- 25 A @ 28 V dc, 30 A @ 250 V ac
- Current Rating :
- 30 A
- Seal Rating :
- -
- Termination Style :
- Quick Connect - Multiple Sizes
- Manufacturer :
- Schneider Electric
- Nominal current :
- 30
- With detachable clamps :
- yes
- Coil Voltage :
- 12V DC
- Mounting Type :
- DIN Rail, Panel Mount
- Degree of protection (IP) :
- IP40
- RoHS :
- Details
- Number of Poles :
- 2
- Product Category :
- Industrial Relays
- Must Release Voltage :
- 1.2 VDC
- Contact Termination :
- Quick Connect
- Coil Power :
- 1.7W
- Type :
- Harmony
- Operate Time :
- 25 ms
- Number of contacts as normally closed contact :
- 0
- Package :
- Box
- Number of contacts as change-over contact :
- 2
- Contact Material :
- Silver Tin Oxide (AgSnO2)
- Series :
- RPF
- Length :
- 33.7mm
- Release Time :
- 25 ms
- IP Rating :
- IP40
- Relay Type :
- GENERAL PURPOSE
- Coil Insulation :
- -
- Contact Current Rating :
- 30 A
- Coil Current :
- 139.5 mA
- Application :
- Power
- Height :
- 68.5
- Mounting Style :
- DIN Rail Mount
- Product Type :
- Industrial Relays
- Type of electric connection :
- Flat plug-in connection
- Coil Resistance :
- 86Ω
- Coil Type :
- Non-Latching
- Must Operate Voltage :
- -
- Width :
- 33.7
- Contact Configuration :
- DPDT
- Product :
- Industrial Relays
- Brand :
- Schneider Electric
- Voltage type for actuating :
- DC
- Switching Voltage :
- 250 VAC, 28 VDC
- Datasheets
- RPF2BJD
RPF2BJD datasheet pdf and Power Relays, Over 2 Amps product details from Schneider Electric stock available at
