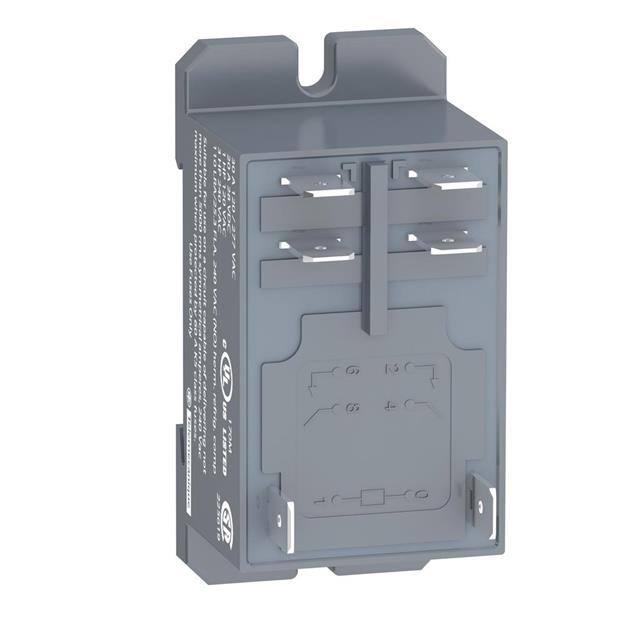

RPF2ABD
Or copy the link below:
- Mfr.Part #
- RPF2ABD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, POWER RELAY, DIN RAIL/P
- Stock
- 26,062
- In Stock ：
- 26,062
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Mounting Style :
- DIN Rail Mount
- Product Status :
- Active
- Features :
- -
- Seal Rating :
- -
- Coil Voltage :
- 24VDC
- Coil Type :
- -
- With detachable clamps :
- yes
- Contact Configuration :
- DPST-NO
- Material of contact surface :
- Other
- Rated control supply voltage at DC :
- 24 - 24
- Coil Resistance :
- 350Ohm
- IP Rating :
- IP40
- Voltage type for actuating :
- DC
- Coil Insulation :
- -
- Termination Style :
- Quick Connect - Multiple Sizes
- Manufacturer :
- Schneider Electric
- Number of contacts as normally open contact :
- 2
- Contact Rating (Current) :
- 25 A
- Material contact :
- Other
- RoHS :
- Details
- Mounting Type :
- Chassis Mount
- Product Type :
- Industrial Relays
- Type :
- Harmony
- Operate Time :
- 25 ms
- Package :
- Box
- Width :
- 33.7
- Contact Form :
- DPST-NO (2 Form A)
- Product :
- Industrial Relays
- Series :
- RPF2AB
- Contact Termination :
- Quick Connect
- Height :
- 68.5
- Degree of protection (IP) :
- IP40
- Relay Type :
- GENERAL PURPOSE
- Release Time :
- 25 ms
- Product Category :
- Industrial Relays
- Contact Current Rating :
- 30 A
- Number of contacts as normally closed contact :
- 0
- Operating Temperature :
- -40°C ~ 55°C
- Must Release Voltage :
- 2.4 VDC
- Coil Current :
- 68.6 mA
- Contact Material :
- Silver Tin Oxide
- Coil Termination :
- Quick Connect
- Switching Voltage :
- 250 VAC, 28 VDC
- Depth :
- 39.2
- Length :
- 39.2 mm
- Subcategory :
- Relays
- Nominal current :
- 30
- Must Operate Voltage :
- -
- Contact Current :
- 30A
- Brand :
- Schneider Electric
- Number of contacts as change-over contact :
- 0
- Type of electric connection :
- Flat plug-in connection
- Datasheets
- RPF2ABD
