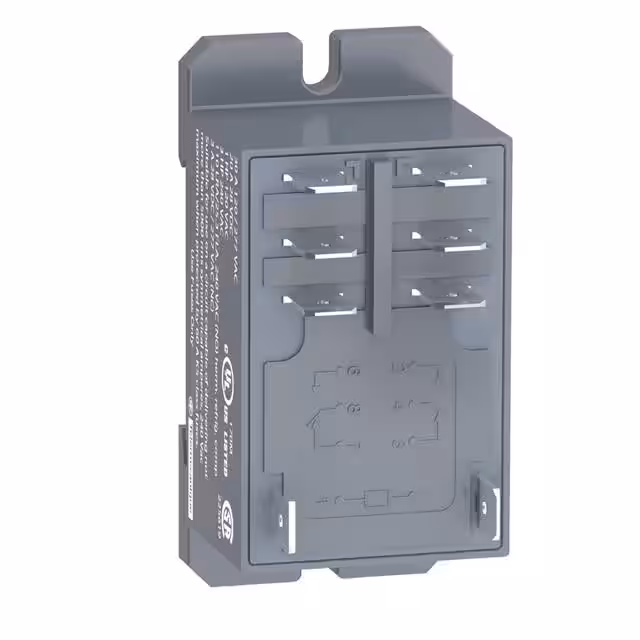

RPF2BB7
Or copy the link below:
- Mfr.Part #
- RPF2BB7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, POWER RELAY, DIN RAIL/P
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Product :
- Power Relays
- Product Category :
- Industrial Relays
- Depth :
- 39.2
- Switching Current :
- 25 A @ 28 V dc, 30 A @ 250 V ac
- Application :
- Power
- Number of Poles :
- 2
- Rated control supply voltage at AC 50 Hz :
- 24 - 24
- Nominal current :
- 30
- Product Type :
- Industrial Relays
- Material of contact surface :
- Other
- Coil Resistance :
- 170 Ohms
- Current Rating :
- 30 A
- Operating Temperature :
- -40°C ~ 55°C
- Voltage type for actuating :
- AC
- Package :
- Box
- Coil Voltage :
- 24VAC
- Width :
- 33.7
- Release Time :
- 25 ms
- Must Release Voltage :
- 3.6 VAC
- With detachable clamps :
- yes
- Coil Insulation :
- -
- Mounting Type :
- Chassis Mount
- Height :
- 68.5
- RoHS :
- Details
- Seal Rating :
- -
- Contact Form :
- DPDT (2 Form C)
- Number of contacts as normally closed contact :
- 0
- Termination Style :
- Quick Connect - Multiple Sizes
- Switching Voltage :
- 250VAC, 28VDC - Max
- Series :
- Harmony
- Must Operate Voltage :
- -
- Contact Configuration :
- DPDT
- Type :
- Harmony Relay
- IP Rating :
- IP40
- Relay Type :
- GENERAL PURPOSE
- Operate Time :
- 25 ms
- Degree of protection (IP) :
- IP40
- Length :
- 33.7mm
- Mounting Style :
- DIN Rail Mount
- Product Status :
- Active
- Coil Termination :
- Quick Connect
- Contact Current Rating :
- 30 A
- Subcategory :
- Relays
- Coil Type :
- Non Latching
- Features :
- -
- Type of electric connection :
- Flat plug-in connection
- Coil Power :
- 4W
- Contact Material :
- Silver Tin Oxide (AgSnO)
- Number of contacts as normally open contact :
- 0
- Coil Current :
- 141.2 mA
- Number of contacts as change-over contact :
- 2
- Brand :
- Schneider Electric
- Rated control supply voltage at AC 60 Hz :
- 24 - 24
- Manufacturer :
- Schneider Electric
- Contact Termination :
- Quick Connect
- Contact Rating (Current) :
- 25 A
- Material contact :
- Other
- Contact Current :
- 30A
- Datasheets
- RPF2BB7
