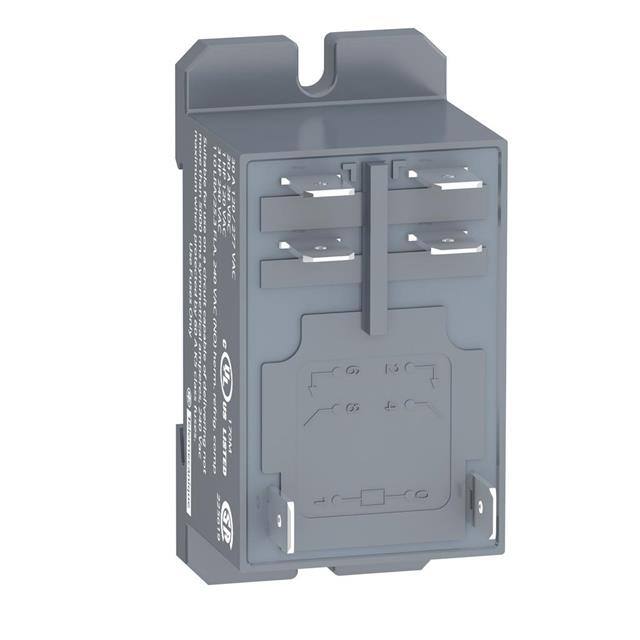

RPF2AP7
Or copy the link below:
- Mfr.Part #
- RPF2AP7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, POWER RELAY, DIN RAIL/P
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Degree of protection (IP) :
- IP40
- Brand :
- Schneider Electric
- Switching Voltage :
- 250 VAC, 28 VDC
- Relay Type :
- GENERAL PURPOSE
- Seal Rating :
- -
- Rated control supply voltage at AC 60 Hz :
- 230 - 230
- Contact Rating (Current) :
- 25 A
- Coil Insulation :
- -
- Depth :
- 39.2
- Terminal Type :
- Plug In
- Width :
- 33.7
- Features :
- -
- With detachable clamps :
- No
- Series :
- RPF2AP
- Standards Met :
- CE, CSA, EN/IEC, GOST, IEC, UL
- Nominal current :
- 30
- Manufacturer :
- Schneider Electric
- Number of contacts as change-over contact :
- 0
- RoHS :
- Details
- Release Time :
- 25 ms
- Type of electric connection :
- Flat plug-in connection
- Coil Termination :
- Quick Connect
- Rated control supply voltage at AC 50 Hz :
- 230 - 230
- Must Release Voltage :
- 34.5 VAC
- Coil Current :
- 14.7 mA
- Type :
- Harmony Relay
- Number of Poles :
- 2
- Mounting Type :
- DIN Rail
- Must Operate Voltage :
- -
- Operating Temperature :
- -40°C ~ 55°C
- Material contact :
- Other
- Product Type :
- Industrial Relays
- Number of contacts as normally closed contact :
- 0
- Operate Time :
- 25 ms
- Product Category :
- Industrial Relays
- Coil Type :
- -
- Material of contact surface :
- Other
- Voltage type for actuating :
- AC
- Contact Termination :
- Quick Connect
- Number of contacts as normally open contact :
- 2
- Contact Material :
- Silver Tin Oxide
- Length :
- 33.7mm
- Termination Style :
- Quick Connect - Multiple Sizes
- Height :
- 68.5
- Switching Current :
- 30A
- Coil Voltage :
- 230VAC
- Contact Current :
- 30A
- Subcategory :
- Relays
- Contact Current Rating :
- 30 A
- Product Status :
- Active
- IP Rating :
- IP40
- Product :
- Power Relays
- Contact Configuration :
- DPST-NO
- Package :
- Box
- Coil Resistance :
- 15.6kOhm
- Contact Form :
- DPST-NO (2 Form A)
- Mounting Style :
- DIN Rail Mount
- Datasheets
- RPF2AP7
