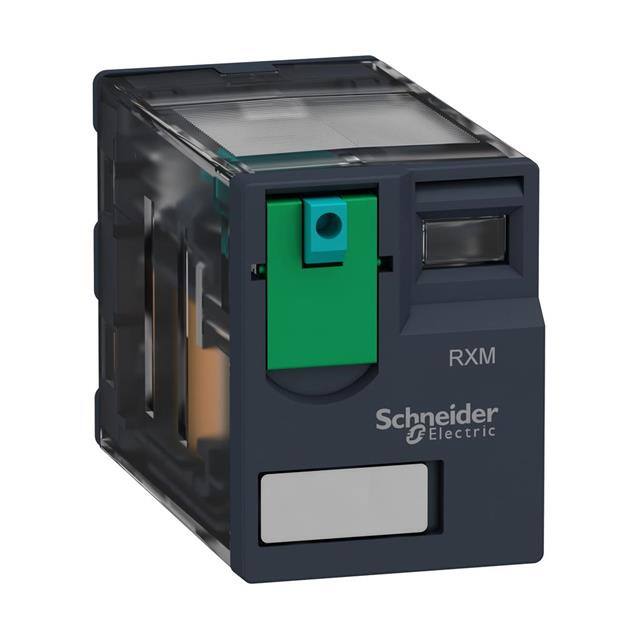

RXM3AB1BD
Or copy the link below:
- Mfr.Part #
- RXM3AB1BD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 27
- In Stock ：
- 27
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Must Release Voltage :
- 2.4 VDC
- Release Time :
- 20 ms
- Coil Resistance :
- 650 Ohms
- Terminal Type :
- Plug In
- Current Rating :
- 10 A
- Contact Current :
- 10A
- Coil Insulation :
- -
- Operate Time :
- 20 ms
- Contact Material :
- Silver Nickel (AgNi)
- IP Rating :
- IP40
- Package :
- Box
- Depth :
- 47.7mm
- Power Consumption :
- 1.1 W
- Coil Termination :
- Plug Pin
- Brand :
- Schneider Electric
- Series :
- Harmony
- Features :
- Lighted Indicator
- Switching Voltage :
- 250VAC, 28VDC - Max
- Number of Poles :
- 3
- Must Operate Voltage :
- 19.2 VDC
- Operating Temperature :
- -40°C ~ 55°C
- Type :
- Harmony Relay
- Termination Style :
- Plug In
- Coil Power :
- 900mW
- Mounting Style :
- Plug In
- Product :
- Industrial Relays
- Height :
- 27mm
- Seal Rating :
- -
- Product Status :
- Active
- Coil Current :
- 36.9 mA
- Product Type :
- Industrial Relays
- Switching Current :
- 10A
- Contact Configuration :
- 3PDT
- Coil Voltage :
- 24VDC
- Relay Type :
- GENERAL PURPOSE
- Contact Rating (Current) :
- 6.7 A
- Contact Form :
- 3PDT (3 Form C)
- Length :
- 21mm
- Manufacturer :
- Schneider Electric
- Width :
- 21 mm
- Contact Termination :
- Quick Connect
- Product Category :
- Industrial Relays
- Contact Current Rating :
- 10 A
- Mounting Type :
- Socketable
- Coil Type :
- Non Latching
- RoHS :
- Details
- Subcategory :
- Relays
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Datasheets
- RXM3AB1BD
