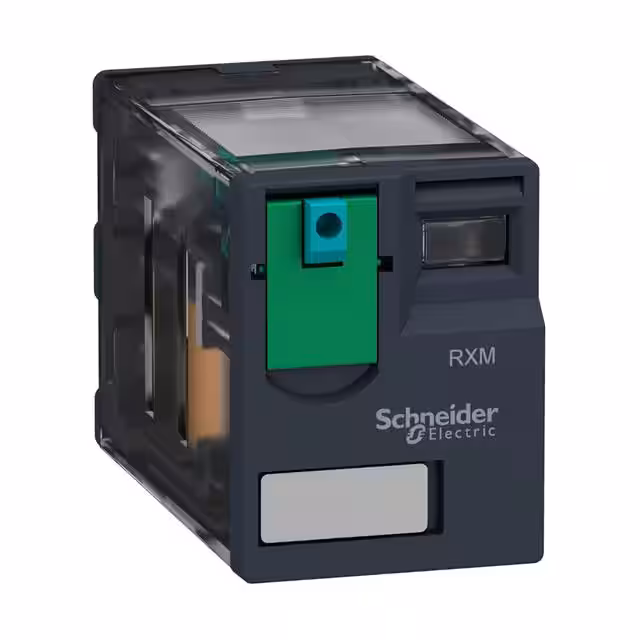

RXM3AB1ED
Or copy the link below:
- Mfr.Part #
- RXM3AB1ED
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Coil Current :
- 18.8 mA
- Coil Voltage :
- 48VDC
- Number of Poles :
- 3
- Material contact :
- Other
- Voltage type for actuating :
- DC
- Brand :
- Schneider Electric
- Current Rating :
- 10 A
- Contact Configuration :
- 3PDT
- Coil Insulation :
- -
- Depth :
- 55
- Length :
- 21mm
- Features :
- Test Button
- Manufacturer :
- Schneider Electric
- Contact Form :
- 3PDT (3 Form C)
- Terminal Type :
- Plug In
- Number of contacts as normally closed contact :
- 0
- Coil Type :
- Non Latching
- Product Type :
- Industrial Relays
- Material of contact surface :
- Other
- Must Release Voltage :
- 4.8 VDC
- Contact Rating (Current) :
- 10 A
- Coil Termination :
- Plug Pin
- Termination Style :
- Plug In
- Coil Power :
- 900mW
- Mounting Type :
- Socketable
- Nominal current :
- 10
- Switching Current :
- 10A
- With detachable clamps :
- yes
- Type of electric connection :
- Plug-in connection
- Package :
- Box
- Subcategory :
- Relays
- Must Operate Voltage :
- 38.4 VDC
- Contact Material :
- Silver Nickel (AgNi)
- Seal Rating :
- -
- Product :
- Industrial Relays
- Height :
- 27
- Product Status :
- Active
- Switching Voltage :
- 250VAC, 28VDC - Max
- Operating Temperature :
- -40°C ~ 55°C
- Product Category :
- Industrial Relays
- Release Time :
- 20 ms
- Number of contacts as normally open contact :
- 0
- Coil Resistance :
- 2.56 kOhms
- RoHS :
- Details
- Width :
- 21
- Series :
- Harmony
- Contact Current Rating :
- 10 A
- Rated control supply voltage at DC :
- 48 - 48
- Operate Time :
- 20 ms
- Number of contacts as change-over contact :
- 3
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Mounting Style :
- Plug In
- Contact Termination :
- Quick Connect
- Degree of protection (IP) :
- IP40
- Relay Type :
- GENERAL PURPOSE
- Datasheets
- RXM3AB1ED
