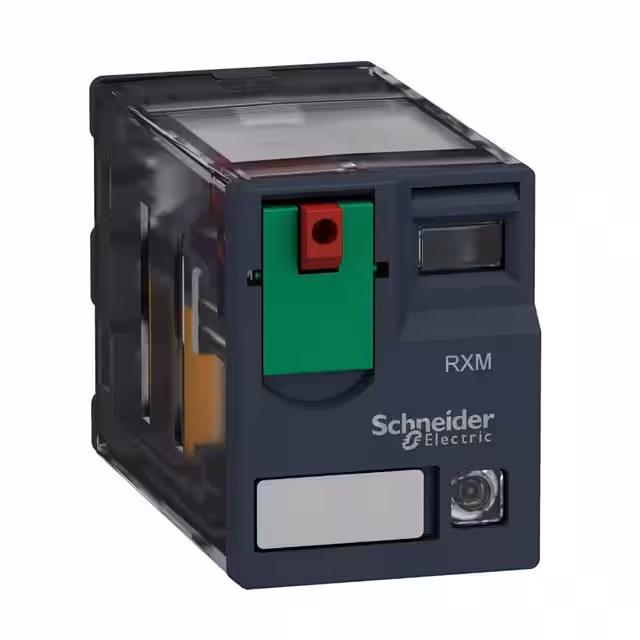

RXM3AB2F7
Or copy the link below:
- Mfr.Part #
- RXM3AB2F7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 13,813
- In Stock ：
- 13,813
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Subcategory :
- Relays
- With detachable clamps :
- No
- Number of contacts as normally open contact :
- 0
- Product Category :
- Industrial Relays
- Nominal current :
- 10
- Contact Configuration :
- 3PDT
- Package :
- Box
- Switching Voltage :
- 250 VAC, 250 VDC
- Coil Voltage :
- 120V AC
- Coil Current :
- 27.1 mA
- Material contact :
- Other
- RoHS :
- Details
- Operating Temperature :
- -40°C ~ 55°C
- Relay Type :
- GENERAL PURPOSE
- Mounting Style :
- Plug In
- Seal Rating :
- -
- Manufacturer :
- Schneider Electric
- Brand :
- Schneider Electric
- Terminal Type :
- Plug In
- Degree of protection (IP) :
- IP40
- Number of contacts as change-over contact :
- 3
- Contact Material :
- Silver Nickel (AgNi)
- Depth :
- 55
- Length :
- 21mm
- Mounting Type :
- Plug In
- Number of Poles :
- 3
- Must Release Voltage :
- 18 VAC
- Series :
- RXM
- Voltage type for actuating :
- AC
- Product Type :
- Industrial Relays
- Contact Rating (Current) :
- 6.7 A
- Rated control supply voltage at AC 50 Hz :
- 120 - 120
- Release Time :
- 20 ms
- Material of contact surface :
- Other
- Termination Style :
- Plug In
- Switching Current :
- 10A
- Rated control supply voltage at AC 60 Hz :
- 120 - 120
- Product :
- Industrial Relays
- Coil Power :
- 1.2W
- Features :
- Lighted Indicator, Test Button
- Operate Time :
- 20 ms
- Product Status :
- Active
- Coil Termination :
- Plug Pin
- Coil Resistance :
- 3630Ω
- Height :
- 27
- Width :
- 21
- Must Operate Voltage :
- 96 VAC
- Coil Type :
- Non-Latching
- Contact Form :
- 3PDT (3 Form C)
- Current Rating :
- 10 A
- Type of electric connection :
- Plug-in connection
- Coil Insulation :
- -
- Number of contacts as normally closed contact :
- 0
- Contact Termination :
- Plug Pin
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Datasheets
- RXM3AB2F7
