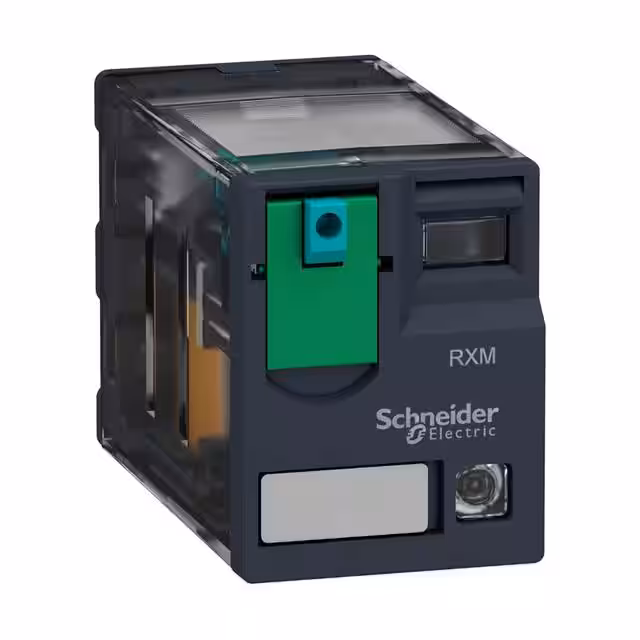

RXM3AB2JD
Or copy the link below:
- Mfr.Part #
- RXM3AB2JD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Mounting Style :
- Plug In
- Switching Current :
- 10A
- Number of Poles :
- 3
- Coil Power :
- 900mW
- Product :
- Industrial Relays
- Manufacturer :
- Schneider Electric
- Product Type :
- Industrial Relays
- Relay Type :
- GENERAL PURPOSE
- Switching Voltage :
- 250VAC, 28VDC - Max
- Coil Current :
- 75 mA
- Contact Configuration :
- 3PDT
- Features :
- Lighted Indicator, Test Button
- RoHS :
- Details
- Coil Insulation :
- -
- Coil Termination :
- Plug Pin
- Coil Voltage :
- 12VDC
- Contact Form :
- 3PDT (3 Form C)
- Current Rating :
- 10 A
- Termination Style :
- Plug In
- Contact Termination :
- Quick Connect
- Release Time :
- 20 ms
- Product Category :
- Industrial Relays
- Must Operate Voltage :
- 9.6 VDC
- Height :
- 27mm
- Brand :
- Schneider Electric
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Package :
- Box
- Seal Rating :
- -
- Series :
- Harmony
- Terminal Type :
- Plug In
- Subcategory :
- Relays
- Depth :
- 47.7mm
- Coil Resistance :
- 160 Ohms
- Must Release Voltage :
- 1.2 VDC
- Coil Type :
- Non Latching
- Contact Current Rating :
- 10 A
- Contact Rating (Current) :
- 10 A
- Length :
- 21mm
- Product Status :
- Active
- Contact Material :
- Silver Nickel (AgNi)
- Operating Temperature :
- -40°C ~ 55°C
- Operate Time :
- 20 ms
- Mounting Type :
- Socketable
- Datasheets
- RXM3AB2JD
