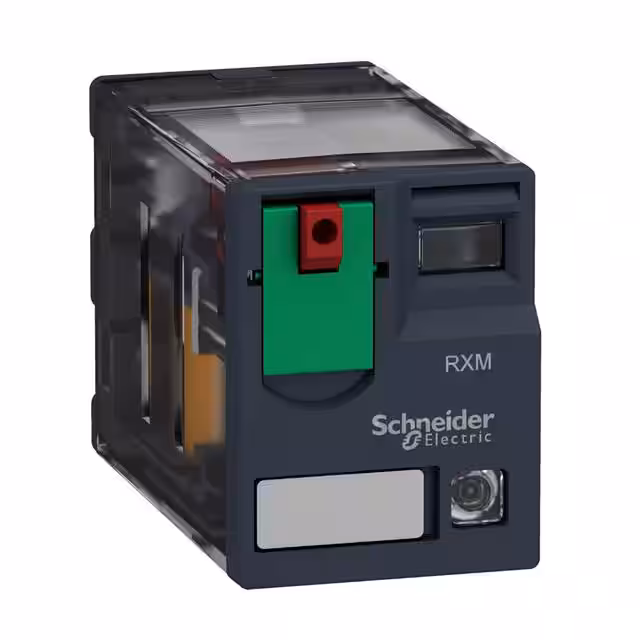

RXM3AB2P7
Or copy the link below:
- Mfr.Part #
- RXM3AB2P7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 7,150
- In Stock ：
- 7,150
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Contact Material :
- Silver Nickel (AgNi)
- Current Rating :
- 10 A
- Number of contacts as change-over contact :
- 3
- Brand :
- Schneider Electric
- Material contact :
- Other
- Product Status :
- Active
- Package :
- Box
- Operate Time :
- 20 ms
- Number of contacts as normally open contact :
- 0
- Mounting Type :
- Plug In
- Release Time :
- 20 ms
- Contact Current Rating :
- 10 A
- Contact Termination :
- Quick Connect
- Operating Temperature :
- -40°C ~ 55°C
- IP Rating :
- IP40
- Switching Current :
- 10A
- Switching Voltage :
- 120 VAC
- RoHS :
- Details
- Series :
- RXM
- Coil Resistance :
- 650Ω
- Rated control supply voltage at AC 60 Hz :
- 230 - 230
- Coil Type :
- Non-Latching
- Number of Poles :
- 3
- Rated control supply voltage at AC 50 Hz :
- 230 - 230
- Coil Power :
- 1.2W
- Seal Rating :
- -
- Subcategory :
- Relays
- With detachable clamps :
- No
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Type of electric connection :
- Plug-in connection
- Terminal Type :
- Plug In
- Relay Type :
- GENERAL PURPOSE
- Voltage type for actuating :
- AC
- Coil Current :
- 15.3 mA
- Product Category :
- Industrial Relays
- Coil Insulation :
- -
- Number of contacts as normally closed contact :
- 0
- Nominal current :
- 10
- Mounting Style :
- Plug In
- Product Type :
- Industrial Relays
- Coil Voltage :
- 230V ac
- Termination Style :
- Plug In
- Width :
- 21
- Must Release Voltage :
- 34.5 VAC
- Features :
- Lighted Indicator, Test Button
- Type :
- Harmony Relay
- Contact Form :
- 3PDT (3 Form C)
- Product :
- Industrial Relays
- Must Operate Voltage :
- 184 VAC
- Contact Rating (Current) :
- 10 A
- Depth :
- 55
- Coil Termination :
- Plug Pin
- Contact Configuration :
- 3PDT
- Degree of protection (IP) :
- IP40
- Height :
- 27
- Length :
- 21mm
- Material of contact surface :
- Other
- Manufacturer :
- Schneider Electric
- Datasheets
- RXM3AB2P7
