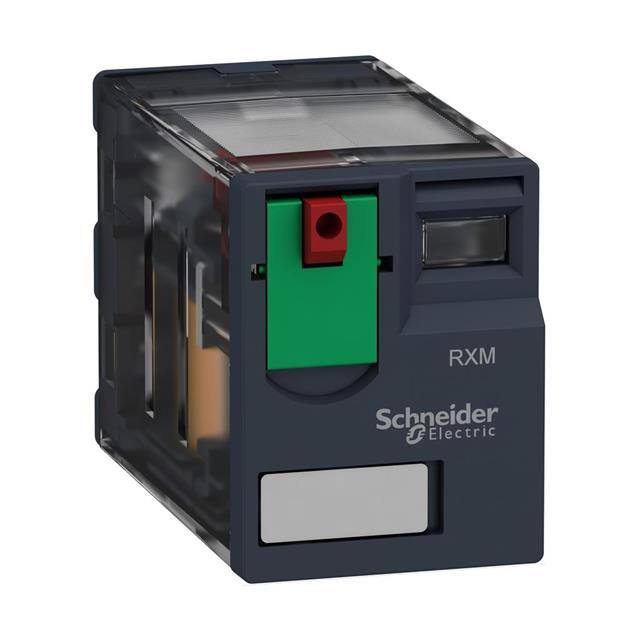

RXM4AB1B7
Or copy the link below:
- Mfr.Part #
- RXM4AB1B7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 20,343
- In Stock ：
- 20,343
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- RoHS :
- Details
- Height :
- 27mm
- Depth :
- 40mm
- Package :
- Box
- Nominal current :
- 6
- Content :
- 1pc(s)
- Coil Voltage :
- 24VAC
- Operating Temperature :
- -40°C ~ 55°C
- Relay Type :
- GENERAL PURPOSE
- Coil Type :
- -
- Contact Material :
- Silver
- Contact Current :
- 6A
- Weight :
- 37g
- Mounting Style :
- Plug In
- Max. temperature :
- +55°C
- Coil Resistance :
- 180Ohm
- Subcategory :
- Relays
- Coil Termination :
- Plug Pin
- Switching Voltage :
- 120 VAC
- Type :
- RXM4AB1B7
- Contact Termination :
- Quick Connect
- Degree of protection (IP) :
- IP40
- Contact Rating (Current) :
- 5 A
- Switching Current :
- 8A
- Max. switching capacity :
- 1500VA
- Material of contact surface :
- Other
- Terminal Type :
- Plug In
- Coil Power :
- 1.2W
- Min. pick-up voltage :
- 19.2V AC
- Material contact :
- Other
- Connection :
- Pin terminal (flat)
- Dim :
- (W x H x D) 21 x 27 x 40 mm
- Termination Style :
- Plug In
- Must Operate Voltage :
- 19.2 VAC
- Product Category :
- Industrial Relays
- Min. temperature :
- -40°C
- Product Type :
- Industrial Relays
- Release Time :
- 20 ms
- Product :
- Industrial Relays
- Resistance (coil) :
- 180Ω
- Number of contacts as normally open contact :
- 0
- Fall time :
- 20ms
- Coil nominal voltage :
- 24V ac
- Switching current (max.) :
- 6A
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Electrical lifespan :
- 100000 cycles
- Manufacturer :
- Schneider Electric
- IP Rating :
- IP40
- Length :
- 21mm
- Number of contacts as normally closed contact :
- 0
- Series :
- RXM
- Rated control supply voltage at AC 60 Hz :
- 24 - 24
- Mounting Type :
- Plug In
- Number of Poles :
- 4
- Operate Time :
- 20 ms
- Rated control supply voltage at AC 50 Hz :
- 24 - 24
- Must Release Voltage :
- 3.6 VAC
- Width :
- 21mm
- Product Status :
- Active
- Features :
- + test button,w/o LED
- Voltage type for actuating :
- AC
- Contact Current Rating :
- 8 A
- Contact Configuration :
- 4PDT
- Seal Rating :
- -
- Coil Insulation :
- -
- Contact Form :
- 4PDT (4 Form C)
- Coil Current :
- 133.3 mA
- Switching voltage (max.) :
- 250V AC
- Type of electric connection :
- Plug-in connection
- With detachable clamps :
- No
- Brand :
- Schneider Electric
- Current Rating :
- 6 A
- Durability :
- 1000 0000 cycles
- Number of contacts as change-over contact :
- 4
- Max. pick-up voltage :
- 26.4V AC
- Datasheets
- RXM4AB1B7
