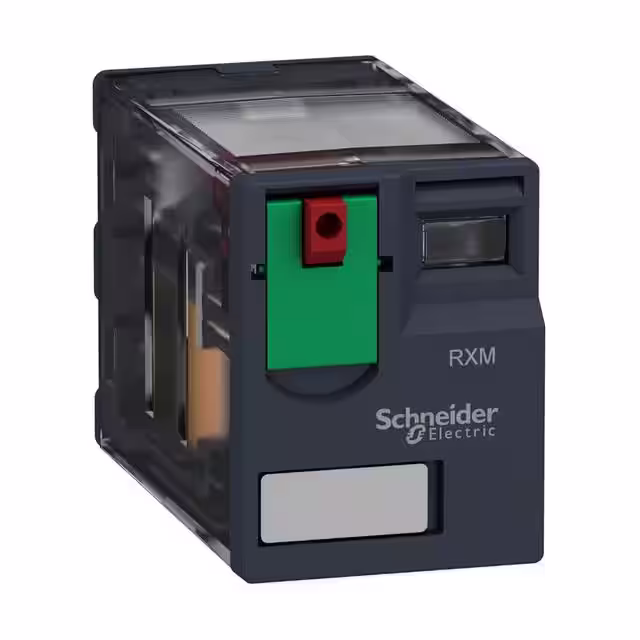

RXM4AB1U7
Or copy the link below:
- Mfr.Part #
- RXM4AB1U7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 28
- In Stock ：
- 28
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Coil Insulation :
- -
- Coil Resistance :
- 15.5 kΩ
- Product Status :
- Active
- Package :
- Box
- Max Operating Temperature :
- 55 °C
- Subcategory :
- Relays
- Relay Type :
- GENERAL PURPOSE
- Coil Voltage (AC) :
- 240 V
- Terminal Type :
- Plug In
- Contact Material :
- Silver
- Product :
- Industrial Relays
- Contact Rating (Current) :
- 6 A
- Length :
- 21mm
- Coil Power :
- 1.2W
- Degree of protection (IP) :
- IP40
- Must Release Voltage :
- 36 VAC
- Material contact :
- Other
- Height :
- 27
- Termination Style :
- Plug In
- Nominal current :
- 6
- Mounting Style :
- Plug In
- Coil Type :
- Non-Latching
- Coil Termination :
- Plug Pin
- Termination :
- Quick Connect
- Number of contacts as change-over contact :
- 4
- Material of contact surface :
- Other
- Switching Voltage :
- 120 VAC
- Contact Form :
- 4PDT (4 Form C)
- Rated control supply voltage at AC 60 Hz :
- 240 - 240
- Throw Configuration :
- 4PDT
- Depth :
- 55
- RoHS :
- Compliant
- Voltage type for actuating :
- AC
- Operate Time :
- 20 ms
- Mounting Type :
- Plug In
- Release Time :
- 20 ms
- Contact Configuration :
- 4PDT
- Number of contacts as normally open contact :
- 0
- Coil Voltage :
- 240V AC
- Must Operate Voltage :
- 192 VAC
- Switching Current :
- 8A
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Rated control supply voltage at AC 50 Hz :
- 240 - 240
- With detachable clamps :
- No
- Product Type :
- Industrial Relays
- Manufacturer :
- Schneider Electric
- Coil Current :
- 13.5 mA
- Min Operating Temperature :
- -40 °C
- Current Rating :
- 6 A
- Number of contacts as normally closed contact :
- 0
- Mount :
- DIN Rail, PCB
- Series :
- RXM
- REACH SVHC :
- Unknown
- Width :
- 21 mm
- Number of Poles :
- 4
- Brand :
- Schneider Electric
- Contact Termination :
- Quick Connect
- Operating Temperature :
- -40°C ~ 55°C
- Seal Rating :
- -
- Contact Current Rating :
- 8 A
- Type of electric connection :
- Plug-in connection
- Features :
- Test Button
- Product Category :
- Industrial Relays
- Datasheets
- RXM4AB1U7
RXM4AB1U7 datasheet pdf and Power Relays, Over 2 Amps product details from Schneider Electric stock available at
