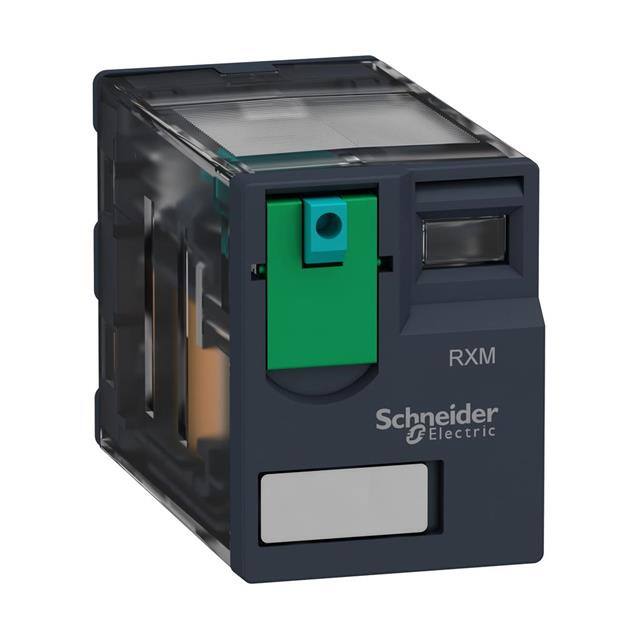

RXM4AB1JD
Or copy the link below:
- Mfr.Part #
- RXM4AB1JD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Brand :
- Schneider Electric
- Type :
- Harmony Relay
- Series :
- RXM
- Current Rating :
- 6 A
- Voltage type for actuating :
- DC
- Product :
- Industrial Relays
- Number of contacts as normally open contact :
- 0
- Mounting Style :
- Plug In
- Contact Current Rating :
- 8 A
- Contact Form :
- 4PDT (4 Form C)
- RoHS :
- Details
- Switching Voltage :
- 120 VAC
- Coil Current :
- 75 mA
- Rated control supply voltage at DC :
- 12 - 12
- Coil Termination :
- Plug Pin
- Width :
- 21
- Must Operate Voltage :
- 9.6 VDC
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Relay Type :
- GENERAL PURPOSE
- Depth :
- 55
- Release Time :
- 20 ms
- Contact Current :
- 6A
- Seal Rating :
- -
- Contact Termination :
- Quick Connect
- Degree of protection (IP) :
- IP40
- Mounting Type :
- Plug In
- Contact Material :
- Silver
- Operate Time :
- 20 ms
- Coil Power :
- 900mW
- Operating Temperature :
- -40°C ~ 55°C
- Nominal current :
- 6
- Material of contact surface :
- Other
- Number of Poles :
- 4
- Number of contacts as change-over contact :
- 4
- Terminal Type :
- Plug In
- Features :
- Lighted Indicator
- With detachable clamps :
- No
- IP Rating :
- IP40
- Package :
- Box
- Number of contacts as normally closed contact :
- 0
- Manufacturer :
- Schneider Electric
- Product Category :
- Industrial Relays
- Type of electric connection :
- Plug-in connection
- Material contact :
- Other
- Coil Insulation :
- -
- Termination Style :
- Plug In
- Contact Configuration :
- 4PDT
- Length :
- 21mm
- Product Type :
- Industrial Relays
- Switching Current :
- 8A
- Coil Type :
- -
- Coil Resistance :
- 160Ohm
- Product Status :
- Active
- Contact Rating (Current) :
- 5 A
- Coil Voltage :
- 12VDC
- Must Release Voltage :
- 1.2 VDC
- Height :
- 27
- Subcategory :
- Relays
- Datasheets
- RXM4AB1JD
