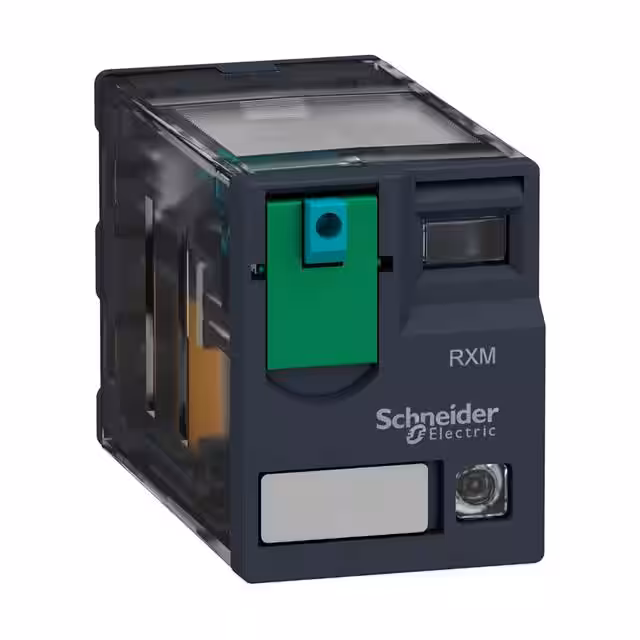

RXM4AB2ED
Or copy the link below:
- Mfr.Part #
- RXM4AB2ED
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Contact Current Rating :
- 8 A
- Coil Resistance :
- 2.6 kΩ
- Length :
- 21mm
- Current Rating :
- 6 A
- Contact Resistance :
- 100 mΩ
- Switching Current :
- 8A
- Rated control supply voltage at DC :
- 48 - 48
- Relay Type :
- GENERAL PURPOSE
- Contact Form :
- 4PDT (4 Form C)
- Subcategory :
- Relays
- Mount :
- DIN Rail, Flanges
- Number of contacts as normally closed contact :
- 0
- Number of contacts as normally open contact :
- 0
- Mounting Type :
- Plug In
- Package :
- Box
- Termination :
- Quick Connect
- Coil Voltage (DC) :
- 48 V
- Coil Type :
- Non-Latching
- Features :
- Lighted Indicator, Test Button
- Terminal Type :
- Plug In
- Switching Voltage :
- 120 VAC
- Coil Insulation :
- -
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Min Operating Temperature :
- -40 °C
- Operate Time :
- 20 ms
- Contact Material :
- Silver
- Material of contact surface :
- Other
- Max Operating Temperature :
- 55 °C
- Throw Configuration :
- 4PDT
- Material contact :
- Other
- Height :
- 40 mm
- Termination Style :
- Plug In
- Must Release Voltage :
- 4.8 VDC
- Width :
- 21 mm
- Type :
- Harmony Relay
- Manufacturer :
- Schneider Electric
- Nominal current :
- 6
- Contact Termination :
- Quick Connect
- Contact Rating (Current) :
- 6 A
- Coil Power :
- 900mW
- Release Time :
- 20 ms
- RoHS :
- Compliant
- Coil Termination :
- Plug Pin
- Contact Configuration :
- 4PDT
- Seal Rating :
- -
- Number of Poles :
- 4
- Product Status :
- Active
- Depth :
- 47
- Coil Current :
- 18.8 mA
- Brand :
- Schneider Electric
- Product Type :
- Industrial Relays
- Product Category :
- Industrial Relays
- Mounting Style :
- Plug In
- Product :
- Industrial Relays
- Must Operate Voltage :
- 38.4 VDC
- Voltage type for actuating :
- DC
- Type of electric connection :
- Other
- Coil Voltage :
- 48V DC
- Degree of protection (IP) :
- IP20
- With detachable clamps :
- No
- Series :
- RXM
- Number of contacts as change-over contact :
- 4
- Operating Temperature :
- -40°C ~ 55°C
- IP Rating :
- IP40
- Datasheets
- RXM4AB2ED
