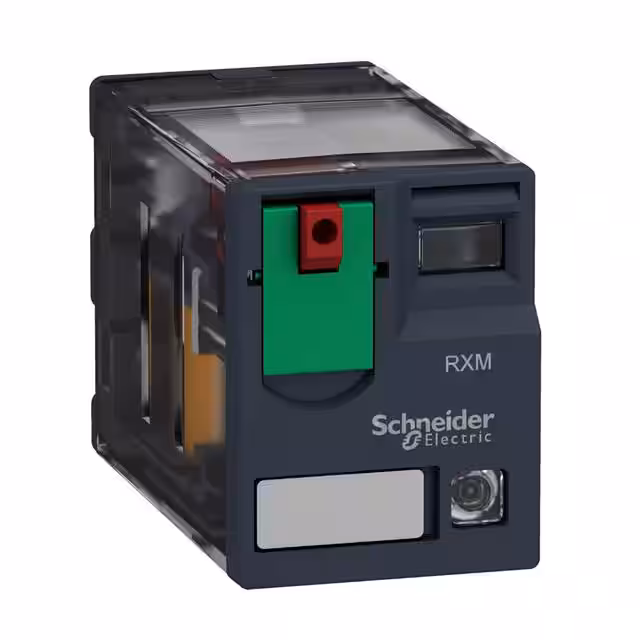

RXM4AB2E7
Or copy the link below:
- Mfr.Part #
- RXM4AB2E7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Termination Style :
- Plug In
- Width :
- 21 mm
- Product Type :
- Industrial Relays
- Series :
- RXM
- Coil Power :
- 1.2W
- Brand :
- Schneider Electric
- Throw Configuration :
- 4PDT
- Contact Form :
- 4PDT (4 Form C)
- Contact Rating (Current) :
- 6 A
- Contact Current Rating :
- 8 A
- Contact Termination :
- Quick Connect
- Switching Voltage :
- 120 VAC
- Features :
- Lighted Indicator, Test Button
- Must Release Voltage :
- 7.2 VAC
- Material of contact surface :
- Other
- Number of Poles :
- 4
- Manufacturer :
- Schneider Electric
- Degree of protection (IP) :
- IP40
- Package :
- Box
- Nominal current :
- 6
- Rated control supply voltage at AC 50 Hz :
- 48 - 48
- Coil Current :
- 67.6 mA
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Contact Configuration :
- 4PDT
- Number of contacts as normally closed contact :
- 0
- Coil Termination :
- Plug Pin
- Product Category :
- Industrial Relays
- Terminal Type :
- Plug In
- Number of contacts as change-over contact :
- 4
- Contact Resistance :
- 100 mΩ
- Contact Material :
- Silver
- REACH SVHC :
- Unknown
- Coil Insulation :
- -
- Number of contacts as normally open contact :
- 0
- Voltage type for actuating :
- AC
- Type of electric connection :
- Plug-in connection
- Operating Temperature :
- -40°C ~ 55°C
- Min Operating Temperature :
- -40 °C
- Max Operating Temperature :
- 55 °C
- Seal Rating :
- -
- Length :
- 21mm
- Switching Current :
- 8A
- Coil Type :
- Non-Latching
- Termination :
- Quick Connect
- Type :
- Harmony Relay
- With detachable clamps :
- No
- Mounting Type :
- Plug In
- Coil Voltage :
- 48V ac
- Rated control supply voltage at AC 60 Hz :
- 48 - 48
- Height :
- 27
- RoHS :
- Compliant
- Must Operate Voltage :
- 38.4 VAC
- Mount :
- DIN Rail, Flanges
- Subcategory :
- Relays
- Coil Voltage (AC) :
- 48 V
- Product :
- Industrial Relays
- Operate Time :
- 20 ms
- Product Status :
- Active
- IP Rating :
- IP40
- Depth :
- 55
- Material contact :
- Other
- Mounting Style :
- Plug In
- Relay Type :
- GENERAL PURPOSE
- Current Rating :
- 6 A
- Coil Resistance :
- 770 Ω
- Release Time :
- 20 ms
- Datasheets
- RXM4AB2E7
