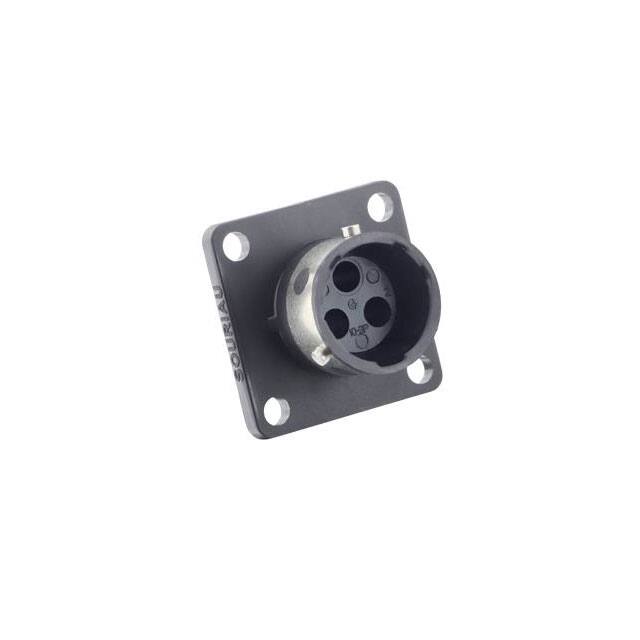

UTGX0103P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Shell Style :

Square Flange

Product :

Receptacles

Mounting Angle :

Straight

Type :

For Male Pins

Mounting Type :

Panel Mount

Diameter :

15.2 mm

Contact Material :

Brass

Gender :

Male

Features :

UV Resistant

Fastening Type :

Bayonet Lock

Shell Size, MIL :

-

Contact Gender :

FEMALE

Housing Color :

Black

IP Rating :

IP65, IP67, IP69K

Insert Material :

Polyamide (PA), Nylon

Includes :

-

Height :

23.8 mm

Contact Shape :

Circular

Mounting Feature :

Flange

Termination Style :

Crimp

Product Status :

Active

Base Product Number :

UTGX0

Shell Finish :

-

Body Orientation :

Straight

Mounting Style :

Panel

Shell Size - Insert :

10-3

Series :

UTGX

Accessory Type :

-

Contact Plating :

-

Contact Size :

16

Number of Positions :

3 (2 + PE)

Connector Type :

Receptacle Housing

Product Category :

Standard Circular Connector

Package :

Bag

Color :

Black

Mating Cycles :

500 Cycles

Shell Size :

10

Voltage Rating :

500 V

Mating Style :

Bayonet

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

RoHS :

Details

Shell Material :

Polyamide (PA), Nylon

Flammability Rating :

UL 94 V-0

Thread Size :

9/16-24 UNEF

Material Flammability Rating :

UL94 V-0

Shielding :

Unshielded

Number of Contacts :

3

Product Type :

Standard Circular Connector

Operating Temperature :

-40°C ~ 105°C

Current Rating :

10A

Housing Gender :

FEMALE

Note :

Contacts Not Included

Wire Gauge :

16 AWG

Military Standard :

MIL-DTL-26482

Orientation :

N (Normal)

Manufacturer :

Souriau

Contact Type :

Crimp

Brand :

Souriau

Subcategory :

Circular Connectors
