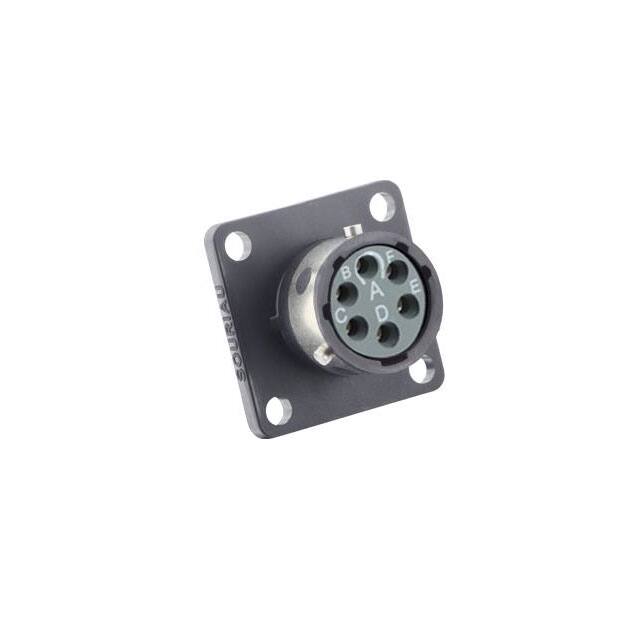

UTGX010D6S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Contact Finish - Mating :

-

Shell Size - Insert :

10-6

Subcategory :

Circular Connectors

Mating Style :

Bayonet

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Voltage Rating :

250V

Brand :

Souriau

Contact Material :

Brass

Orientation :

N (Normal)

Base Product Number :

UTGX0

Shell Style :

Square Flange

Current Rating (Amps) :

6A

Product Type :

Standard Circular Connector

Shell Material :

Polyamide (PA), Nylon

Shell Size, MIL :

-

Current Rating :

6 A

Package :

Bag

Mounting Feature :

Flange

Contact Finish Thickness - Mating :

-

Operating Temperature :

-40°C ~ 105°C

Shell Size :

10

Termination :

Solder

Mounting Style :

Panel

Contact Plating :

Gold

RoHS :

Details

Fastening Type :

Bayonet Lock

Housing Gender :

FEMALE

Termination Style :

Solder

Material Flammability Rating :

UL94 V-0

Mounting Angle :

Straight

Product :

Receptacles

Insert Material :

Polychloroprene

Wire Gauge :

20 AWG

Color :

Black

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Series :

UTGX

Primary Material :

Plastic

Contact Gender :

Socket (Female)

Connector Type :

Receptacle, Female Sockets

Manufacturer :

Souriau

IP Rating :

IP65, IP67, IP69K

Cable Opening :

-

Backshell Material, Plating :

-

Shell Finish :

-

Mounting Type :

Panel Mount, Through Hole

Flammability Rating :

UL 94 V-0

Features :

UV Resistant

Thread Size :

9/16-24 UNEF

Shielding :

Unshielded

Product Status :

Active

Product Category :

Standard Circular Connector

Number of Positions :

6

Mating Cycles :

500 Cycles
