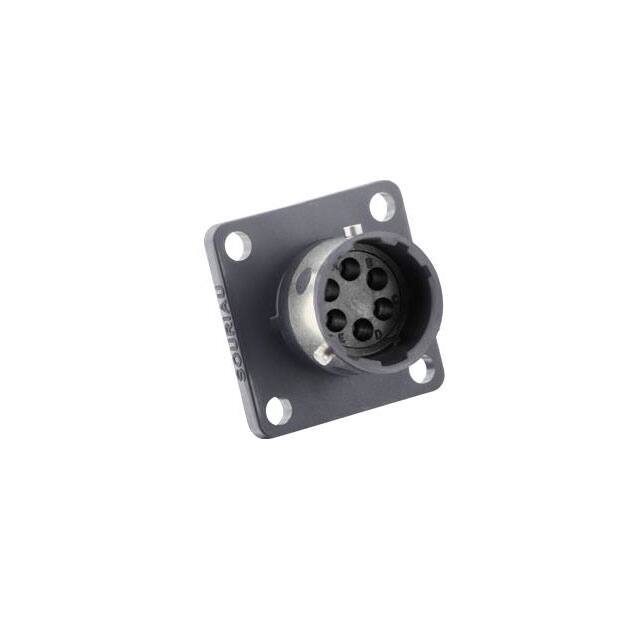

UTGX0106P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Number of Contacts :

6

Color :

Black

Flammability Rating :

UL 94 V-0

Features :

UV Resistant

Shell Size :

10

Shell Finish :

-

Termination Method :

Crimp

Fastening Type :

Bayonet Lock

Product Category :

Standard Circular Connector

Mounting Style :

Panel

Orientation :

N (Normal)

Note :

Contacts Not Included

Housing Color :

Black

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Material Flammability Rating :

UL94 V-0

Product Type :

Standard Circular Connector

Series :

UTGX

Shell Size, MIL :

-

Package :

Bag

RoHS :

Details

Contact Material :

Brass

Insert Material :

Polyamide (PA), Nylon

Base Product Number :

UTGX0

Wire Gauge :

20 AWG

Product :

Receptacles

Manufacturer :

Souriau

Housing Gender :

FEMALE

Shielding :

Unshielded

Accessory Type :

-

Contact Size :

20

Termination Style :

Crimp

Height :

23.8 mm

Mounting Type :

Panel Mount

Includes :

-

Contact Plating :

-

Contact Shape :

Circular

Mounting Feature :

Flange

Number of Positions :

6

Shell Material :

Polyamide (PA), Nylon

Mating Cycles :

500 Cycles

IP Rating :

IP65, IP67, IP69K

Diameter :

15.2 mm

Voltage Rating :

250 V

Current Rating :

4.5 A

Shell Style :

Square Flange

Mating Style :

Bayonet

Brand :

Souriau

Product Status :

Active

Shell Size - Insert :

10-6

Connector Type :

Receptacle Housing

Type :

For Male Pins

Contact Gender :

Pin (Male)

Thread Size :

9/16-24 UNEF

Contact Type :

Crimp

Mounting Angle :

Straight

Operating Temperature :

-40°C ~ 105°C

Subcategory :

Circular Connectors
