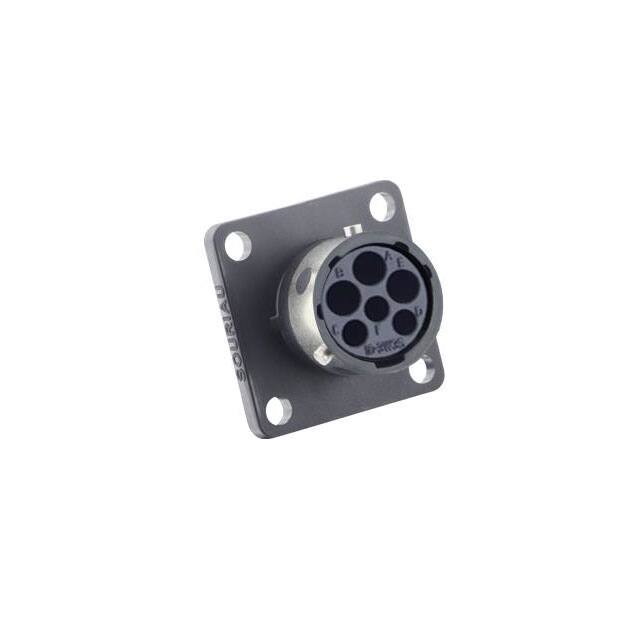

UTGX0103W3S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

RoHS :

Details

Brand :

Souriau

Product Category :

Standard Circular Connector

Subcategory :

Circular Connectors

Current Rating :

+/- 7.5 A, +/- 13 A

Termination Style :

Crimp

Shell Size, MIL :

-

Contact Material :

Brass

Product Status :

Active

Housing Color :

Black

Product Type :

Standard Circular Connector

Series :

UTGX

Mounting Angle :

Straight

Material Flammability Rating :

UL94 V-0

Contact Gender :

Socket (Female)

Orientation :

N (Normal)

Number of Positions :

6

Mounting Style :

Panel

Includes :

-

Shell Material :

Polyamide (PA), Nylon

Contact Type :

Crimp

Contact Size :

16 (3), 20 (3)

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Shell Finish :

-

Flammability Rating :

UL 94 V-0

Mating Style :

Bayonet

IP Rating :

IP65, IP67, IP69K

Mating Cycles :

500 Cycles

Product :

Receptacles

Fastening Type :

Bayonet Lock

Operating Temperature :

-40°C ~ 105°C

Contact Shape :

Circular

Thread Size :

9/16-24 UNEF

Shell Size :

10

Voltage Rating :

250 V, 500 V

Insert Material :

Polyamide (PA), Nylon

Base Product Number :

UTGX0

Manufacturer :

Souriau

Type :

For Female Sockets

Connector Type :

Receptacle Housing

Package :

Bag

Wire Gauge :

20 AWG

Shell Style :

Square Flange

Contact Plating :

Gold

Shell Size - Insert :

10-3W3

Note :

Contacts Not Included

Mounting Type :

Panel Mount

Color :

Black

Features :

UV Resistant

Mounting Feature :

Flange

Shielding :

Unshielded

Housing Gender :

FEMALE
