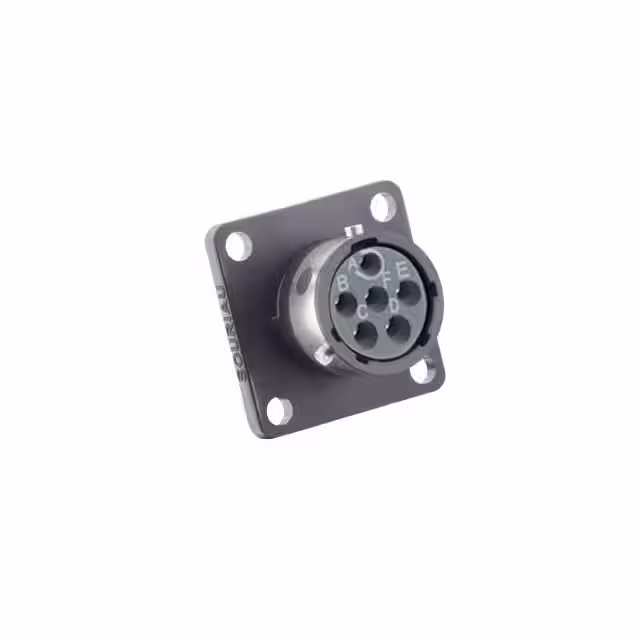

UTGX010D98S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Shell Finish :

-

Connector Type :

Receptacle, Female Sockets

Mounting Angle :

Straight

Product Type :

Standard Circular Connector

Current Rating (Amps) :

6A

Insert Material :

Polychloroprene

Shell Size - Insert :

10-98

Mounting Style :

Panel

Features :

UV Resistant

Base Product Number :

UTGX0

Series :

UTGX

Number of Positions :

6

Flammability Rating :

UL 94 V-0

Termination Style :

Solder

Contact Plating :

Gold

Product :

Receptacles

IP Rating :

IP65, IP67, IP69K

Primary Material :

Plastic

Manufacturer :

Souriau

Package :

Bag

Shell Size :

10

Shielding :

Unshielded

Mating Style :

Bayonet

Orientation :

N (Normal)

Current Rating :

6 A

Contact Finish Thickness - Mating :

-

Shell Size, MIL :

-

Subcategory :

Circular Connectors

Color :

Black

Product Category :

Standard Circular Connector

Termination :

Solder

Backshell Material, Plating :

-

Thread Size :

9/16-24 UNEF

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Material Flammability Rating :

UL94 V-0

Mounting Feature :

Flange

Mounting Type :

Panel Mount, Through Hole

Contact Finish - Mating :

-

Voltage Rating :

250V

Housing Gender :

FEMALE

Cable Opening :

-

Operating Temperature :

-40°C ~ 105°C

Shell Material :

Polyamide (PA), Nylon

Fastening Type :

Bayonet Lock

Shell Style :

Square Flange

Contact Gender :

Socket (Female)

Contact Material :

Brass

RoHS :

Details

Mating Cycles :

500 Cycles

Brand :

Souriau

Product Status :

Active

Wire Gauge :

20 AWG

Applications :

Automation, Industrial, Instrumentation, Testing Equipment
