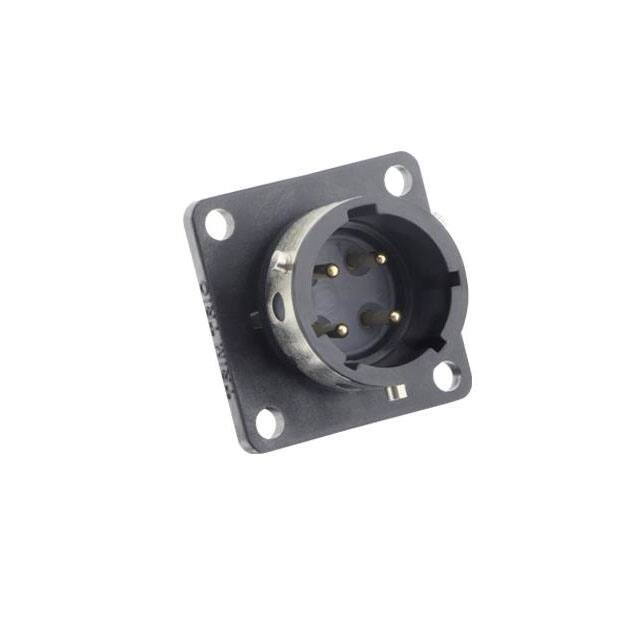

UTGX012D4P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Operating Temperature :

-40°C ~ 105°C

Shell Finish :

-

Subcategory :

Circular Connectors

Diameter :

19.15 mm

Product :

Receptacles

Base Product Number :

UTGX0

Mating Cycles :

500 Cycles

Product Type :

Standard Circular Connector

Termination :

Solder

Contact Material :

Brass

Contact Gender :

Male

Contact Finish - Mating :

-

Wire Gauge :

16 AWG

Housing Gender :

FEMALE

RoHS :

Details

Voltage Rating :

600V

Contact Plating :

-

Package :

Bag

Features :

UV Resistant

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Shell Size, MIL :

-

Accessory Type :

-

Flammability Rating :

UL 94 V-0

Mounting Style :

Panel

Number of Positions :

4 (3 + PE)

Series :

UTGX

Cable Opening :

-

Shell Style :

Square Flange

Current Rating (Amps) :

13A

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Manufacturer :

Souriau

Orientation :

N (Normal)

Termination Style :

Solder

Body Orientation :

Straight

Product Status :

Active

Backshell Material, Plating :

-

Height :

26.2 mm

Current Rating :

13A

Thread Size :

11/16-24 UNEF

Color :

Black

Brand :

Souriau

IP Rating :

IP65, IP67, IP69K

Mounting Angle :

Straight

Product Category :

Standard Circular Connector

Insert Material :

Polychloroprene

Shell Size :

12

Military Standard :

MIL-DTL-26482

Material Flammability Rating :

UL94 V-0

Mating Style :

Bayonet

Shell Material :

Polyamide (PA), Nylon

Fastening Type :

Bayonet Lock

Mounting Type :

Panel Mount, Through Hole

Connector Type :

Receptacle, Male Pins

Mounting Feature :

Flange

Shielding :

Unshielded

Number of Contacts :

4

Primary Material :

Plastic

Contact Finish Thickness - Mating :

-

Gender :

Male
