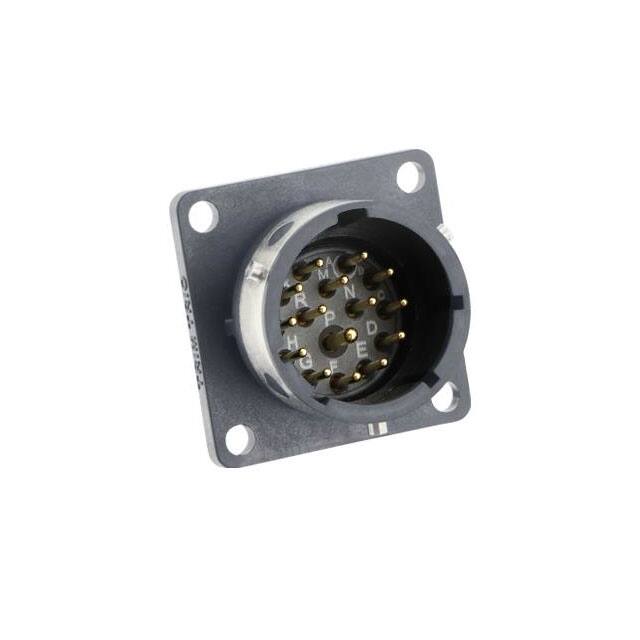

UTGX014D15P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Shielding :

Unshielded

Product :

Receptacles

Series :

UTGX

Mounting Angle :

Straight

Primary Material :

Plastic

Manufacturer :

Souriau

Subcategory :

Circular Connectors

Product Status :

Active

Shell Size, MIL :

-

Contact Gender :

Pin (Male)

Mounting Feature :

Flange

Cable Opening :

-

Insert Material :

Polychloroprene

Backshell Material, Plating :

-

Shell Material :

Polyamide (PA), Nylon

Base Product Number :

UTGX0

Mating Cycles :

500 Cycles

Contact Finish - Mating :

-

Color :

Black

Mounting Style :

Panel

Number of Positions :

15 (Power)

Connector Type :

Receptacle, Male Pins

Mounting Type :

Panel Mount, Through Hole

Contact Plating :

Gold

Thread Size :

13/16-20 UNEF

Voltage Rating :

250V, 600V

Flammability Rating :

UL 94 V-0

Product Category :

Standard Circular Connector

Product Type :

Standard Circular Connector

IP Rating :

IP65, IP67, IP69K

Brand :

Souriau

Package :

Bag

Shell Finish :

-

Shell Style :

Square Flange

Current Rating (Amps) :

5A, 12A

Features :

UV Resistant

Orientation :

N (Normal)

Fastening Type :

Bayonet Lock

RoHS :

Details

Contact Material :

Brass

Operating Temperature :

-40°C ~ 105°C

Current Rating :

+/- 5 A, +/- 12 A

Termination Style :

Solder

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Housing Gender :

FEMALE

Shell Size - Insert :

14-15

Shell Size :

14

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Contact Finish Thickness - Mating :

-

Mating Style :

Bayonet

Wire Gauge :

16 AWG
