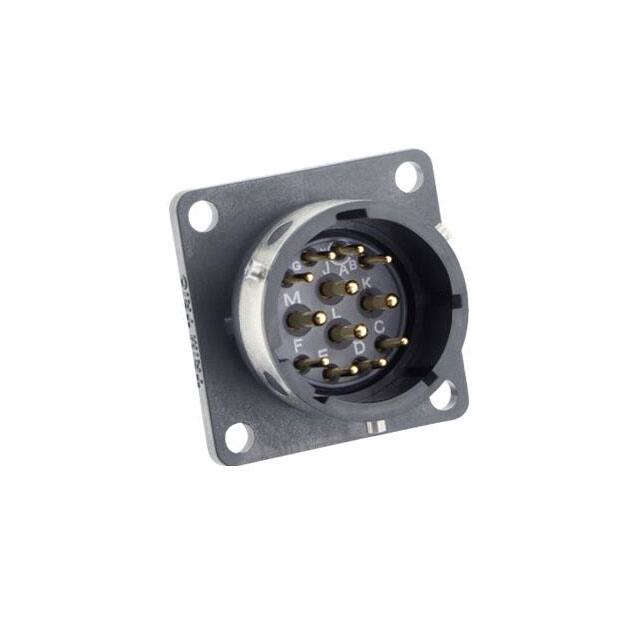

UTGX014E12P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Current Rating (Amps) :

5A, 10A

Contact Gender :

Male

Housing Gender :

FEMALE

Gender :

Male

Contact Plating :

-

Accessory Type :

-

Shell Size, MIL :

-

Color :

Black

Number of Positions :

12 (Power)

Voltage Rating :

250V, 600V

Shell Material :

Polyamide (PA), Nylon

Termination :

Solder Cup

IP Rating :

IP65, IP67, IP69K

Base Product Number :

UTGX0

Height :

28.6 mm

Termination Style :

Solder

Product Type :

Standard Circular Connector

Manufacturer :

Souriau

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Shell Style :

Square Flange

Contact Finish - Mating :

-

Insert Material :

Polychloroprene

Connector Type :

Receptacle, Male Pins

Series :

UTGX

Orientation :

N (Normal)

Current Rating :

5 A, 10 A

Thread Size :

13/16-20 UNEF

Mounting Type :

Panel Mount

Cable Opening :

-

Shielding :

Unshielded

Diameter :

22.31 mm

Mounting Feature :

Flange

Shell Finish :

-

Fastening Type :

Bayonet Lock

Shell Size :

14

RoHS :

Details

Mounting Style :

Panel

Subcategory :

Circular Connectors

Primary Material :

Plastic

Mounting Angle :

Straight

Features :

UV Resistant

Contact Material :

Brass

Material Flammability Rating :

UL94 V-0

Product Category :

Standard Circular Connector

Backshell Material, Plating :

-

Mating Cycles :

500 Cycles

Contact Finish Thickness - Mating :

-

Body Orientation :

Straight

Mating Style :

Bayonet

Operating Temperature :

-40°C ~ 105°C

Number of Contacts :

12

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Brand :

Souriau

Product Status :

Active

Package :

Bag

Product :

Receptacles

Flammability Rating :

UL 94 V-0

Military Standard :

MIL-DTL-26482
