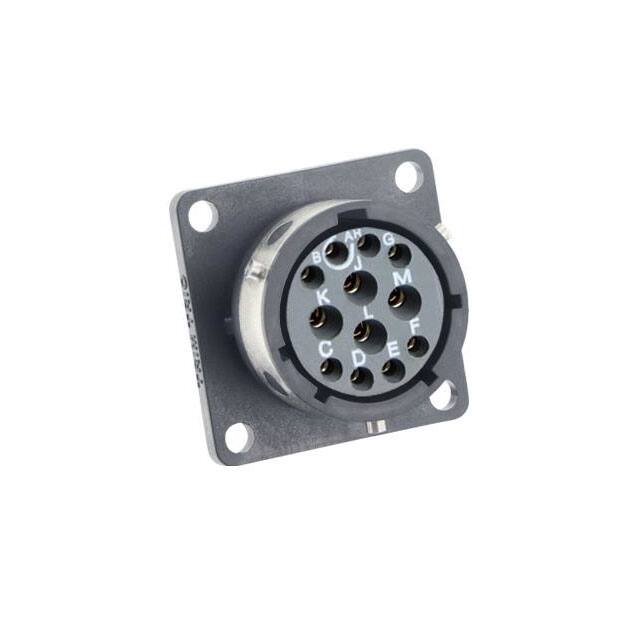

UTGX014E12S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Contact Finish Thickness - Mating :

-

Termination :

Solder Cup

Shielding :

Unshielded

Fastening Type :

Bayonet Lock

Product Category :

Standard Circular Connector

Subcategory :

Circular Connectors

Mounting Angle :

Straight

Product Type :

Standard Circular Connector

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Orientation :

N (Normal)

Color :

Black

Shell Size, MIL :

-

Shell Material :

Polyamide (PA), Nylon

Contact Material :

Brass

Backshell Material, Plating :

-

Material Flammability Rating :

UL94 V-0

Termination Style :

Solder

Connector Type :

Receptacle, Female Sockets

Shell Finish :

-

Shell Size - Insert :

14-12

IP Rating :

IP65, IP67, IP69K

Mounting Feature :

Flange

Cable Opening :

-

Features :

UV Resistant

Thread Size :

13/16-20 UNEF

Brand :

Souriau

Contact Plating :

Gold

Contact Gender :

Socket (Female)

Mounting Type :

Panel Mount

Shell Style :

Square Flange

Mating Cycles :

500 Cycles

Mating Style :

Bayonet

Series :

UTGX

Base Product Number :

UTGX0

Operating Temperature :

-40°C ~ 105°C

Manufacturer :

Souriau

Mounting Style :

Panel

Product Status :

Active

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Flammability Rating :

UL 94 V-0

Current Rating :

+/- 5 A, +/- 10 A

Primary Material :

Plastic

Product :

Receptacles

RoHS :

Details

Current Rating (Amps) :

5A, 10A

Package :

Bag

Number of Positions :

12 (Power)

Insert Material :

Polychloroprene

Voltage Rating :

250V, 600V

Contact Finish - Mating :

-

Shell Size :

14

Housing Gender :

FEMALE
