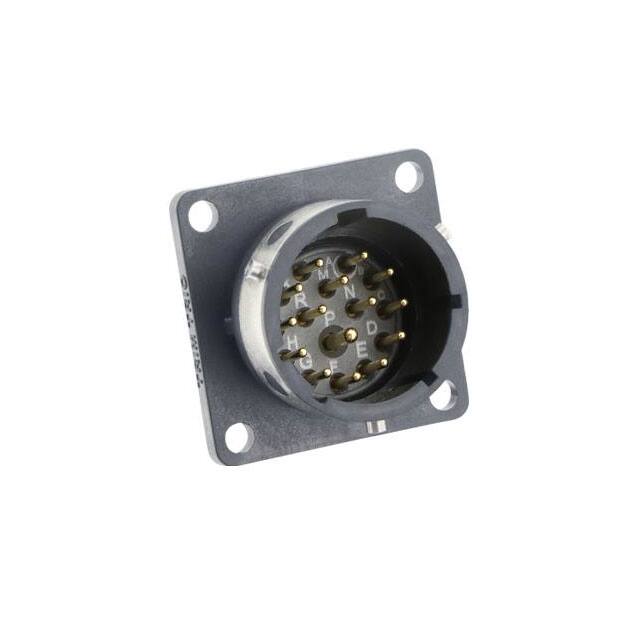

UTGX014E15P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Shell Size - Insert :

14-15

Housing Gender :

FEMALE

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Thread Size :

13/16-20 UNEF

Contact Material :

Brass

Base Product Number :

UTGX0

Shell Style :

Square Flange

Contact Finish Thickness - Mating :

-

Mounting Feature :

Flange

Subcategory :

Circular Connectors

Shell Size :

14

Cable Opening :

-

Shell Material :

Polyamide (PA), Nylon

Product Category :

Standard Circular Connector

Series :

UTGX

Connector Type :

Receptacle, Male Pins

Features :

UV Resistant

RoHS :

Details

Backshell Material, Plating :

-

Termination :

Solder Cup

Package :

Bag

Shielding :

Unshielded

Voltage Rating :

250V, 600V

Contact Finish - Mating :

-

Flammability Rating :

UL 94 V-0

Mounting Angle :

Straight

Termination Style :

Solder

Product :

Receptacles

Orientation :

N (Normal)

Mounting Type :

Panel Mount

Insert Material :

Polychloroprene

Brand :

Souriau

Material Flammability Rating :

UL94 V-0

Primary Material :

Plastic

Contact Plating :

Gold

Product Status :

Active

Shell Size, MIL :

-

Color :

Black

Shell Finish :

-

Current Rating (Amps) :

5A, 12A

Current Rating :

+/- 5 A, +/- 12 A

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

IP Rating :

IP65, IP67, IP69K

Mounting Style :

Panel

Mating Style :

Bayonet

Contact Gender :

Pin (Male)

Fastening Type :

Bayonet Lock

Number of Positions :

15 (Power)

Product Type :

Standard Circular Connector

Manufacturer :

Souriau

Mating Cycles :

500 Cycles

Operating Temperature :

-40°C ~ 105°C
