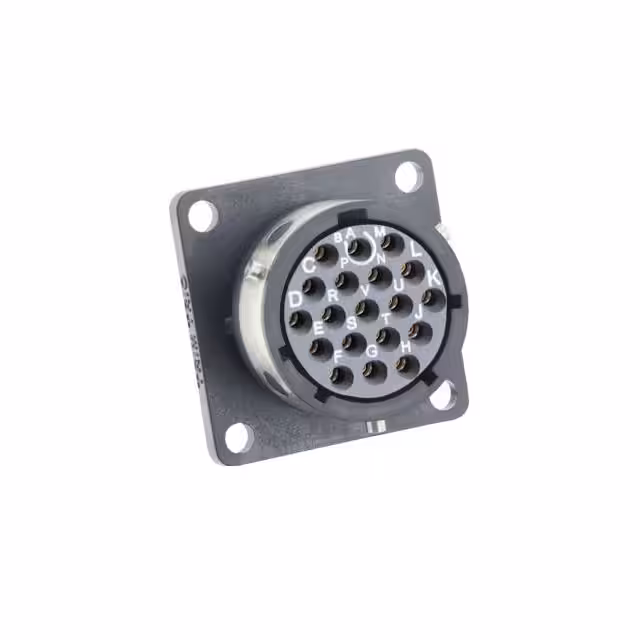

UTGX014E19S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Product :

Receptacles

Mounting Style :

Panel

RoHS :

Details

Contact Finish - Mating :

-

Housing Gender :

FEMALE

Shell Material :

Polyamide (PA), Nylon

Wire Gauge :

20 AWG

Shielding :

Unshielded

Termination :

Solder Cup

Material Flammability Rating :

UL94 V-0

Mounting Angle :

Straight

Termination Style :

Solder

Product Category :

Standard Circular Connector

Current Rating :

4 A

Shell Finish :

-

Features :

UV Resistant

Orientation :

N (Normal)

Shell Size :

14

Mating Style :

Bayonet

Series :

UTGX

Color :

Black

Backshell Material, Plating :

-

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Base Product Number :

UTGX0

Cable Opening :

-

Shell Size, MIL :

-

Operating Temperature :

-40°C ~ 105°C

Fastening Type :

Bayonet Lock

Product Type :

Standard Circular Connector

Shell Size - Insert :

14-19

Number of Positions :

19

Contact Plating :

Gold

Mating Cycles :

500 Cycles

Brand :

Souriau

Flammability Rating :

UL 94 V-0

Insert Material :

Polychloroprene

Manufacturer :

Souriau

Package :

Bag

Shell Style :

Square Flange

Product Status :

Active

Thread Size :

13/16-20 UNEF

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Mounting Feature :

Flange

Voltage Rating :

250V

Contact Material :

Brass

IP Rating :

IP65, IP67, IP69K

Primary Material :

Plastic

Mounting Type :

Panel Mount

Contact Gender :

Socket (Female)

Connector Type :

Receptacle, Female Sockets

Current Rating (Amps) :

4A

Contact Finish Thickness - Mating :

-

Subcategory :

Circular Connectors
