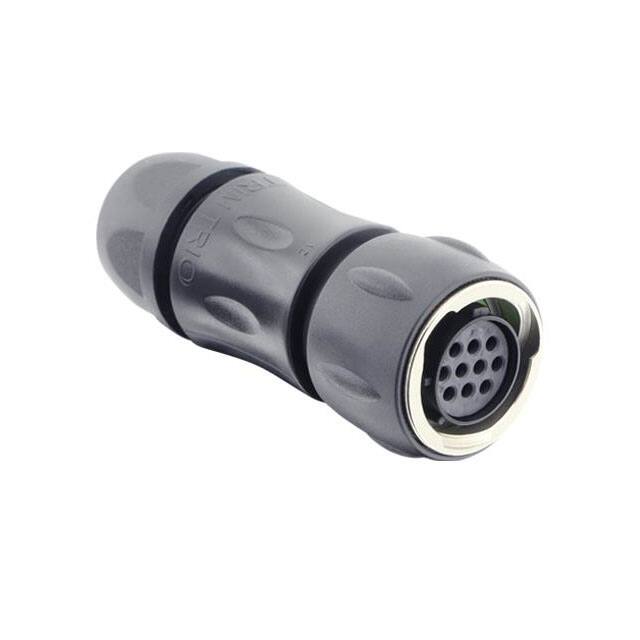

UTGX6JC1210S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Voltage Rating :

250 V

Product Type :

Standard Circular Connector

Features :

Backshell, Coupling Nut, UV Resistant

Contact Shape :

Circular

Housing Gender :

Male

Shell Size, MIL :

-

Number of Positions :

10

Orientation :

N (Normal)

Base Product Number :

UTGX6

Mounting Feature :

-

Termination Style :

Crimp

Color :

Black

Mating Style :

Bayonet

Fastening Type :

Bayonet Lock

RoHS :

Details

Product Category :

Standard Circular Connector

IP Rating :

IP65, IP67, IP69K

Wire Gauge :

20 AWG

Termination Method :

Crimp

Series :

UTGX

Shell Style :

Straight

Insert Material :

Polyamide (PA), Nylon

Contact Gender :

Socket (Female)

Flammability Rating :

UL 94 V-0

Shell Size - Insert :

12-10

Shielding :

Unshielded

Manufacturer :

Souriau

Mounting Angle :

Straight

Note :

Contacts Not Included

Accessory Type :

-

Connector Type :

Plug Housing

Contact Plating :

-

Mating Cycles :

500 Cycles

Thread Size :

11/16-24 UNEF

Operating Temperature :

-40°C ~ 105°C

Includes :

4 pcs - 1 Connector, 1 Backshell, 1 O-Ring, 1 Seal

Diameter :

29.7 mm

Package :

Bag

Number of Contacts :

10

Product Status :

Active

Mounting Style :

CABLE

Subcategory :

Circular Connectors

Shell Finish :

-

Brand :

Souriau

Type :

For Female Sockets

Current Rating :

4.5 A

Contact Material :

Brass

Housing Color :

Black

Contact Type :

Crimp

Product :

Plugs

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Contact Size :

20

Material Flammability Rating :

UL94 V-0

Shell Size :

12

Shell Material :

Polyamide (PA), Nylon

Mounting Type :

Free Hanging (In-Line)
