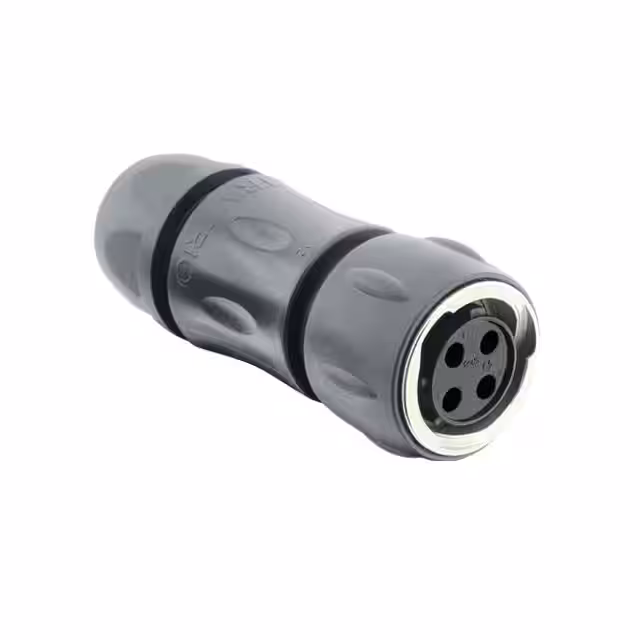

UTGX6JC124S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Termination Method :

Crimp

Termination Style :

Crimp

Product Category :

Standard Circular Connector

Base Product Number :

UTGX6

Voltage Rating :

500 V

Series :

UTGX

Package :

Bag

Flammability Rating :

UL 94 V-0

Thread Size :

11/16-24 UNEF

Mating Cycles :

500 Cycles

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Shell Size - Insert :

12-4

Number of Positions :

4 (3 + PE)

Color :

Black

Number of Contacts :

4

IP Rating :

IP65, IP67, IP69K

Wire Gauge :

14 AWG

RoHS :

Details

Insert Material :

Polyamide (PA), Nylon

Contact Gender :

Socket (Female)

Mating Style :

Bayonet

Operating Temperature :

-40°C ~ 105°C

Shell Size, MIL :

-

Mounting Style :

CABLE

Fastening Type :

Bayonet Lock

Housing Color :

Black

Contact Material :

Brass

Orientation :

N (Normal)

Mounting Feature :

-

Contact Size :

16

Note :

Contacts Not Included

Brand :

Souriau

Connector Type :

Plug Housing

Shielding :

Unshielded

Current Rating :

16 A

Accessory Type :

-

Contact Type :

Crimp

Type :

For Female Sockets

Includes :

4 pcs - 1 Connector, 1 Backshell, 1 O-Ring, 1 Seal

Material Flammability Rating :

UL94 V-0

Product Type :

Standard Circular Connector

Shell Style :

Straight

Mounting Angle :

Straight

Product Status :

Active

Product :

Plugs

Manufacturer :

Souriau

Mounting Type :

Free Hanging (In-Line)

Contact Shape :

Circular

Shell Material :

Polyamide (PA), Nylon

Subcategory :

Circular Connectors

Shell Size :

12

Features :

Backshell, Coupling Nut, UV Resistant

Housing Gender :

Male

Shell Finish :

-

Diameter :

29.7 mm

Contact Plating :

-
