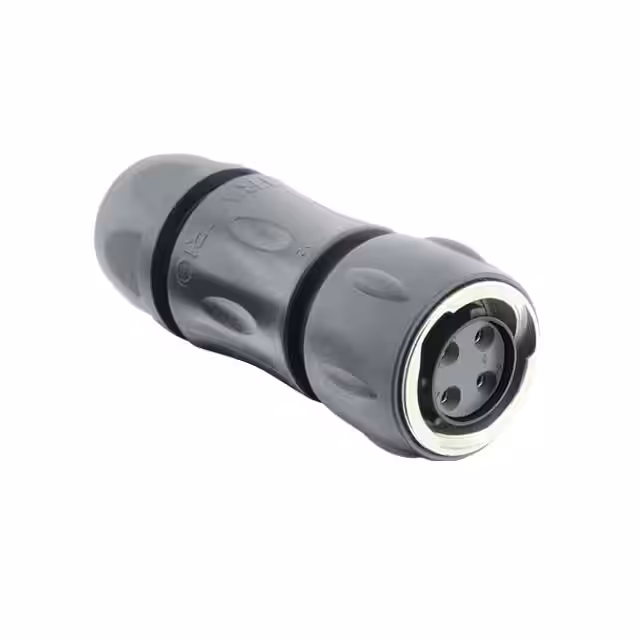

UTGX6JC12E4S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Product :

Plugs

Number of Contacts :

4

Manufacturer :

Souriau

IP Rating :

IP65, IP67, IP69K

Material Flammability Rating :

UL94 V-0

Package :

Bag

Mounting Angle :

Straight

Mounting Type :

Free Hanging (In-Line)

Termination Style :

Solder

Thread Size :

11/16-24 UNEF

Brand :

Souriau

Housing Gender :

Male

Orientation :

N (Normal)

Contact Gender :

Socket (Female)

Shell Finish :

-

Current Rating :

13 A

Product Status :

Active

Contact Finish Thickness - Mating :

-

Termination :

Solder Cup

Primary Material :

Plastic

Number of Positions :

4 (3 + PE)

Mating Cycles :

500 Cycles

Current Rating (Amps) :

13A

Base Product Number :

UTGX6

Product Category :

Standard Circular Connector

Contact Plating :

-

Operating Temperature :

-40°C ~ 105°C

Mating Style :

Bayonet

Subcategory :

Circular Connectors

Wire Gauge :

16 AWG

Color :

Black

Features :

Backshell, Coupling Nut, UV Resistant

Contact Material :

Brass

Product Type :

Standard Circular Connector

Fastening Type :

Bayonet Lock

Diameter :

29.7 mm

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Shell Size, MIL :

-

Flammability Rating :

UL 94 V-0

Termination Method :

Solder

Accessory Type :

-

Shielding :

Unshielded

RoHS :

Details

Shell Material :

Polyamide (PA), Nylon

Backshell Material, Plating :

Polyamide (PA), Nylon

Mounting Style :

CABLE

Connector Type :

Plug, Female Sockets

Mounting Feature :

-

Shell Style :

Straight

Cable Opening :

0.197" ~ 0.472" (5.00mm ~ 12.00mm)

Insert Material :

Polychloroprene

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Series :

UTGX

Voltage Rating :

600V

Contact Finish - Mating :

-

Shell Size :

12
