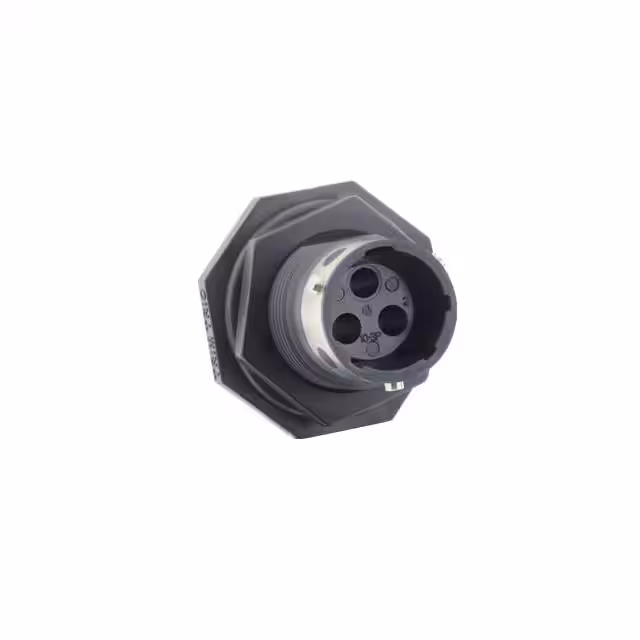

UTGX7103P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Product Status :

Active

Termination Style :

Crimp

Connector Type :

Receptacle Housing

Contact Size :

16

Package :

Bag

Series :

UTGX

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Orientation :

N (Normal)

Accessory Type :

-

RoHS :

Details

Base Product Number :

UTGX7

Flammability Rating :

UL 94 V-0

Number of Positions :

3 (2 + PE)

Manufacturer :

Souriau

Mounting Feature :

Bulkhead - Front Side Nut

Operating Temperature :

-40°C ~ 105°C

Shielding :

Unshielded

Includes :

3 pcs - 1 Connector, 1 Nut, 1 O-Ring

Thread Size :

11/16-24 UNEF

Diameter :

15.2 mm

Contact Gender :

Pin (Male)

Type :

For Male Pins

Mounting Angle :

Straight

Material Flammability Rating :

UL94 V-0

Shell Size :

10

Mating Style :

Bayonet

Mounting Style :

Panel

Current Rating :

10 A

Contact Type :

Crimp

Number of Contacts :

3

Insert Material :

Polyamide (PA), Nylon

Voltage Rating :

500 V

Shell Size - Insert :

10-3

Product Category :

Standard Circular Connector

Termination Method :

Crimp

Color :

Black

Wire Gauge :

16 AWG

Shell Style :

Jam Nut

Features :

UV Resistant

Contact Shape :

Circular

Fastening Type :

Bayonet Lock

Product :

Receptacles

Shell Size, MIL :

-

Brand :

Souriau

Housing Gender :

FEMALE

Shell Material :

Polyamide (PA), Nylon

Note :

Contacts Not Included

Subcategory :

Circular Connectors

IP Rating :

IP65, IP67, IP69K

Product Type :

Standard Circular Connector

Contact Plating :

-

Mating Cycles :

500 Cycles

Mounting Type :

Panel Mount

Shell Finish :

-

Contact Material :

Brass

Housing Color :

Black

Height :

27 mm
