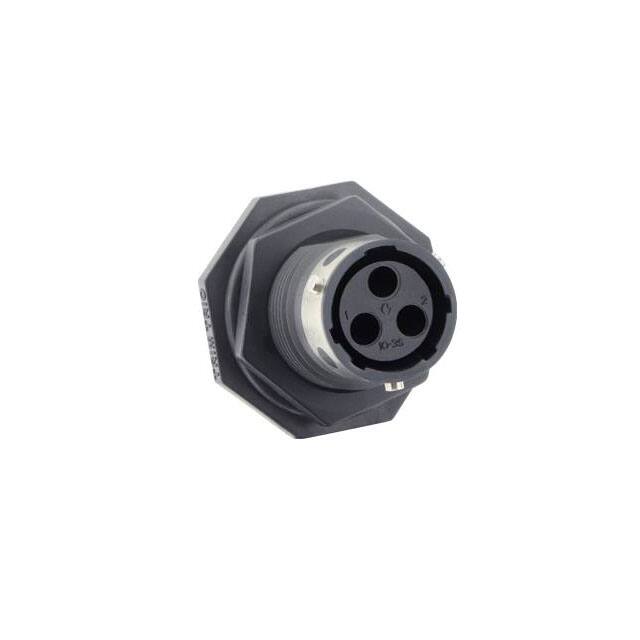

UTGX7103S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Contact Gender :

Socket (Female)

Shell Size - Insert :

10-3

Shielding :

Unshielded

Insert Material :

Polyamide (PA), Nylon

Housing Color :

Black

Note :

Contacts Not Included

Manufacturer :

Souriau

Shell Size :

10

Series :

UTGX

Color :

Black

Base Product Number :

UTGX7

Contact Size :

16

Mating Cycles :

500 Cycles

Mounting Feature :

Bulkhead - Front Side Nut

Contact Material :

Brass

Termination Style :

Crimp

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Features :

UV Resistant

Product Status :

Active

Subcategory :

Circular Connectors

Fastening Type :

Bayonet Lock

Voltage Rating :

500 V

RoHS :

Details

Shell Material :

Polyamide (PA), Nylon

Current Rating :

10 A

Product Category :

Standard Circular Connector

Product :

Receptacles

Thread Size :

11/16-24 UNEF

Shell Style :

Jam Nut

Package :

Bag

Shell Size, MIL :

-

Mating Style :

Bayonet

Housing Gender :

FEMALE

Material Flammability Rating :

UL94 V-0

Orientation :

N (Normal)

Brand :

Souriau

Mounting Style :

Panel

Contact Plating :

Gold

Connector Type :

Receptacle Housing

Mounting Type :

Panel Mount

Operating Temperature :

-40°C ~ 105°C

IP Rating :

IP65, IP67, IP69K

Includes :

3 pcs - 1 Connector, 1 Nut, 1 O-Ring

Shell Finish :

-

Product Type :

Standard Circular Connector

Number of Positions :

3 (2 + PE)

Type :

For Female Sockets

Contact Type :

Crimp

Contact Shape :

Circular

Mounting Angle :

Straight

Wire Gauge :

16 AWG

Flammability Rating :

UL 94 V-0
