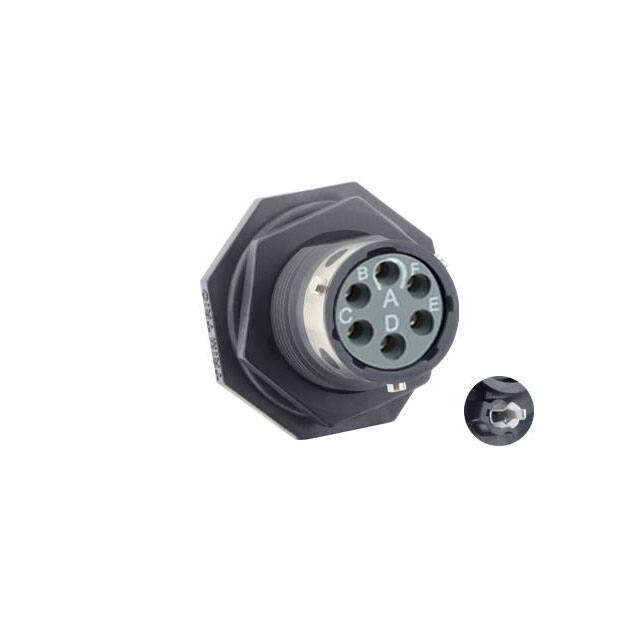

UTGX710D6S32

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Product :

Receptacles

Mounting Style :

Panel

Shell Size - Insert :

10-6

Contact Material :

Brass

Base Product Number :

UTGX7

Manufacturer :

Souriau

Thread Size :

11/16-24 UNEF

Package :

Bag

Material Flammability Rating :

UL94 V-0

Brand :

Souriau

Series :

UTGX

Shell Size, MIL :

-

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Termination Style :

Solder

Mating Cycles :

500 Cycles

RoHS :

Details

Number of Positions :

6

IP Rating :

IP65, IP67, IP69K

Insert Material :

Polychloroprene

Contact Gender :

Socket (Female)

Cable Opening :

-

Contact Finish Thickness - Mating :

-

Shell Finish :

-

Flammability Rating :

UL 94 V-0

Wire Gauge :

20 AWG

Product Type :

Standard Circular Connector

Mounting Angle :

Straight

Color :

Black

Primary Material :

Plastic

Operating Temperature :

-40°C ~ 105°C

Product Category :

Standard Circular Connector

Subcategory :

Circular Connectors

Orientation :

N (Normal)

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Contact Plating :

Gold

Product Status :

Active

Termination :

Solder

Current Rating :

6 A

Fastening Type :

Bayonet Lock

Mating Style :

Bayonet

Current Rating (Amps) :

6A

Voltage Rating :

250V

Shell Size :

10

Contact Finish - Mating :

-

Features :

Board Lock, UV Resistant

Shell Material :

Polyamide (PA), Nylon

Housing Gender :

FEMALE

Mounting Type :

Panel Mount, Through Hole

Backshell Material, Plating :

-

Connector Type :

Receptacle, Female Sockets

Shielding :

Unshielded

Mounting Feature :

Bulkhead - Front Side Nut

Shell Style :

Jam Nut
