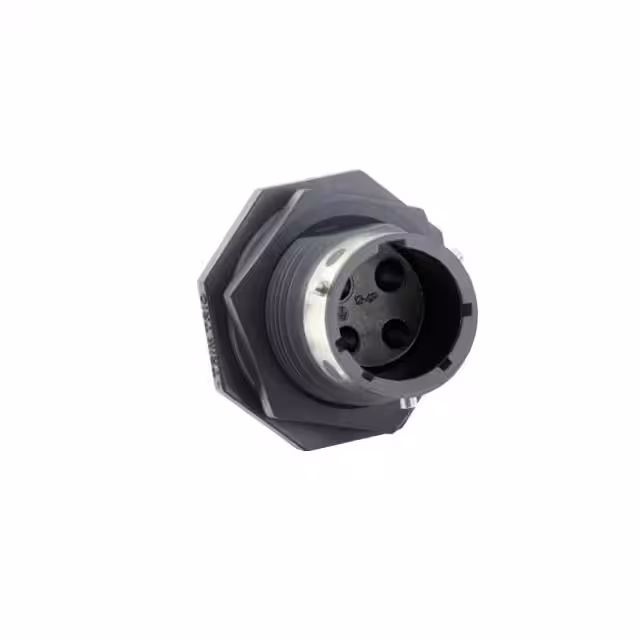

UTGX7124P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Contact Plating :

-

Termination Style :

Crimp

Product Category :

Standard Circular Connector

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass

Wire Gauge :

14 AWG

Accessory Type :

-

Mounting Style :

Panel

Housing Color :

Black

Number of Positions :

4 (3 + PE)

Number of Contacts :

4

Shell Style :

Jam Nut

Contact Type :

Crimp

Thread Size :

7/8-20 UNEF

Base Product Number :

UTGX7

Mounting Type :

Panel Mount

Fastening Type :

Bayonet Lock

Product :

Receptacles

Termination Method :

Crimp

Shell Size, MIL :

-

Color :

Black

Voltage Rating :

500 V

Insert Material :

Polyamide (PA), Nylon

Package :

Bag

Subcategory :

Circular Connectors

IP Rating :

IP65, IP67, IP69K

Diameter :

19.15 mm

Contact Size :

16

Connector Type :

Receptacle Housing

Housing Gender :

FEMALE

RoHS :

Details

Flammability Rating :

UL 94 V-0

Note :

Contacts Not Included

Type :

For Male Pins

Manufacturer :

Souriau

Product Type :

Standard Circular Connector

Shell Finish :

-

Shell Size :

12

Features :

UV Resistant

Orientation :

N (Normal)

Operating Temperature :

-40°C ~ 105°C

Product Status :

Active

Shell Size - Insert :

12-4

Contact Shape :

Circular

Includes :

3 pcs - 1 Connector, 1 Nut, 1 O-Ring

Mounting Feature :

Bulkhead - Front Side Nut

Shell Material :

Polyamide (PA), Nylon

Shielding :

Unshielded

Height :

31.75 mm

Brand :

Souriau

Mating Style :

Bayonet

Current Rating :

16 A

Mating Cycles :

500 Cycles

Contact Gender :

Pin (Male)

Mounting Angle :

Straight

Series :

UTGX
