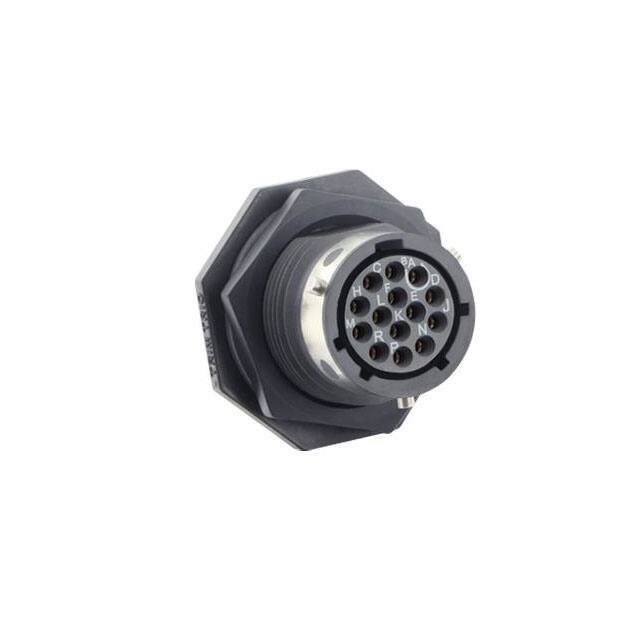

UTGX712D14S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Mating Style :

Bayonet

Subcategory :

Circular Connectors

Current Rating (Amps) :

4.5A

Material Flammability Rating :

UL94 V-0

Voltage Rating :

250V

Product Type :

Standard Circular Connector

Primary Material :

Plastic

Thread Size :

7/8-20 UNEF

Shell Size - Insert :

12-14

Fastening Type :

Bayonet Lock

Current Rating :

4.5 A

Termination :

Solder

Operating Temperature :

-40°C ~ 105°C

Mounting Feature :

Bulkhead - Front Side Nut

Mating Cycles :

500 Cycles

Series :

UTGX

Backshell Material, Plating :

-

Mounting Angle :

Straight

Color :

Black

Product Status :

Active

Termination Style :

Solder

Shell Material :

Polyamide (PA), Nylon

Features :

UV Resistant

Contact Material :

Brass

Brand :

Souriau

IP Rating :

IP65, IP67, IP69K

Insert Material :

Polychloroprene

Shell Style :

Jam Nut

Housing Gender :

FEMALE

Manufacturer :

Souriau

Contact Finish Thickness - Mating :

-

Package :

Bag

Shell Finish :

-

Orientation :

N (Normal)

Cable Opening :

-

Mounting Type :

Panel Mount, Through Hole

Wire Gauge :

20 AWG

Base Product Number :

UTGX7

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

RoHS :

Details

Contact Finish - Mating :

-

Number of Positions :

14

Product Category :

Standard Circular Connector

Mounting Style :

Panel

Shell Size, MIL :

-

Shielding :

Unshielded

Product :

Receptacles

Contact Gender :

Socket (Female)

Connector Type :

Receptacle, Female Sockets

Flammability Rating :

UL 94 V-0

Contact Plating :

Gold

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Shell Size :

12
