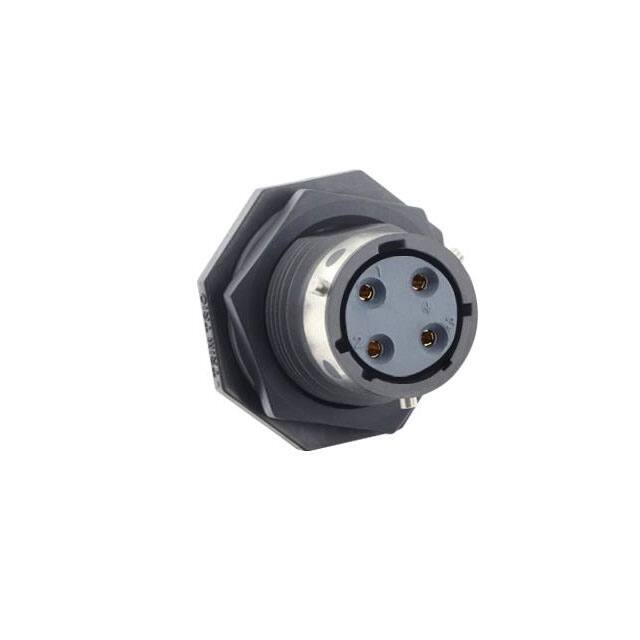

UTGX712D4S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Termination Style :

Solder

Brand :

Souriau

Primary Material :

Plastic

Termination :

Solder

Shell Style :

Jam Nut

Mating Style :

Bayonet

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Contact Material :

Brass

Material Flammability Rating :

UL94 V-0

Fastening Type :

Bayonet Lock

Insert Material :

Polychloroprene

Contact Finish Thickness - Mating :

-

Current Rating :

13 A

Series :

UTGX

Wire Gauge :

16 AWG

Current Rating (Amps) :

13A

Backshell Material, Plating :

-

Connector Type :

Receptacle, Female Sockets

Product :

Receptacles

Package :

Bag

Mating Cycles :

500 Cycles

IP Rating :

IP65, IP67, IP69K

Mounting Style :

Panel

Features :

UV Resistant

Product Status :

Active

Shielding :

Unshielded

Base Product Number :

UTGX7

Product Type :

Standard Circular Connector

Number of Positions :

4 (3 + PE)

Mounting Feature :

Bulkhead - Front Side Nut

Thread Size :

7/8-20 UNEF

Subcategory :

Circular Connectors

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Orientation :

N (Normal)

Contact Gender :

Socket (Female)

Manufacturer :

Souriau

Product Category :

Standard Circular Connector

RoHS :

Details

Mounting Angle :

Straight

Shell Finish :

-

Shell Material :

Polyamide (PA), Nylon

Shell Size :

12

Shell Size, MIL :

-

Voltage Rating :

600V

Housing Gender :

FEMALE

Shell Size - Insert :

12-4

Flammability Rating :

UL 94 V-0

Contact Finish - Mating :

-

Operating Temperature :

-40°C ~ 105°C

Mounting Type :

Panel Mount, Through Hole

Contact Plating :

Gold

Color :

Black

Cable Opening :

-
