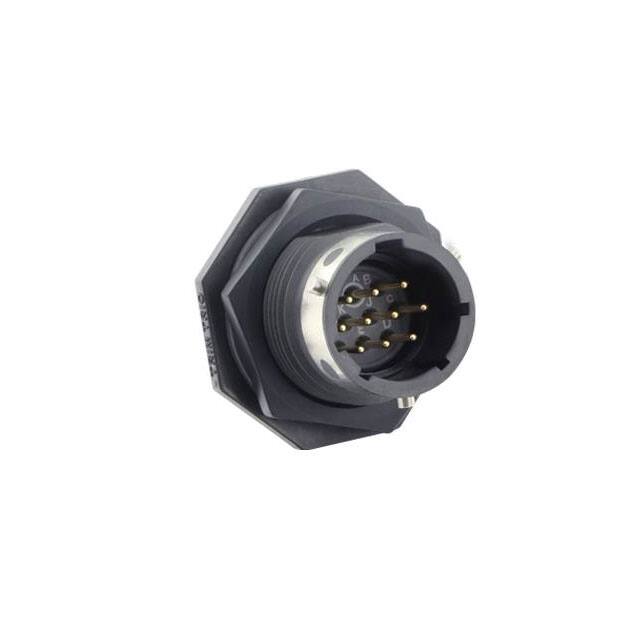

UTGX712E10P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Contact Material :

Brass

Package :

Bag

Product Type :

Standard Circular Connector

Contact Finish - Mating :

-

Voltage Rating :

250V

Mating Style :

Bayonet

RoHS :

Details

Base Product Number :

UTGX7

Insert Material :

Polychloroprene

Primary Material :

Plastic

Contact Plating :

Gold

Shell Size :

12

Connector Type :

Receptacle, Male Pins

Fastening Type :

Bayonet Lock

Shell Size - Insert :

12-10

Manufacturer :

Souriau

Product Status :

Active

Contact Gender :

Pin (Male)

Product Category :

Standard Circular Connector

Features :

UV Resistant

Thread Size :

7/8-20 UNEF

Subcategory :

Circular Connectors

IP Rating :

IP65, IP67, IP69K

Brand :

Souriau

Housing Gender :

FEMALE

Mounting Style :

Panel

Flammability Rating :

UL 94 V-0

Mating Cycles :

500 Cycles

Number of Positions :

10

Shell Material :

Polyamide (PA), Nylon

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Backshell Material, Plating :

-

Termination Style :

Solder

Shell Finish :

-

Contact Finish Thickness - Mating :

-

Mounting Angle :

Straight

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Series :

UTGX

Mounting Type :

Panel Mount

Operating Temperature :

-40°C ~ 105°C

Current Rating (Amps) :

4.5A

Mounting Feature :

Bulkhead - Front Side Nut

Material Flammability Rating :

UL94 V-0

Orientation :

N (Normal)

Cable Opening :

-

Product :

Receptacles

Shell Size, MIL :

-

Accessory Type :

-

Termination :

Solder Cup

Current Rating :

4.5 A

Wire Gauge :

20 AWG

Color :

Black

Shielding :

Unshielded

Shell Style :

Jam Nut
