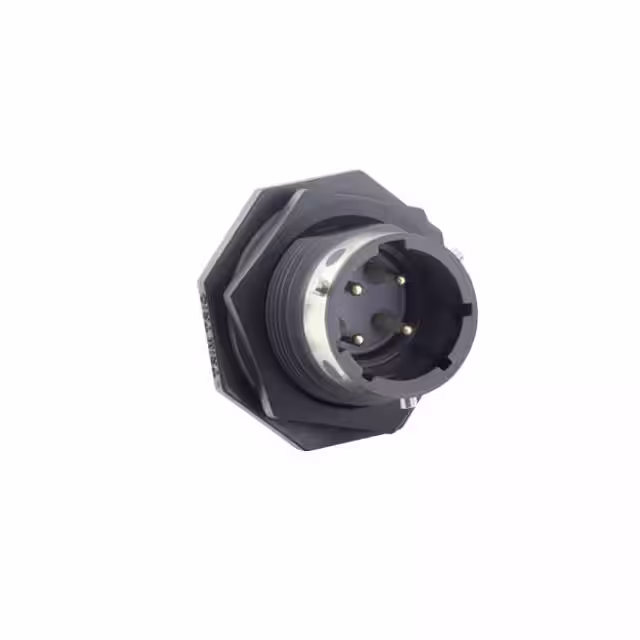

UTGX712E4P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Base Product Number :

UTGX7

Accessory Type :

-

Mounting Feature :

Bulkhead - Front Side Nut

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Product :

Receptacles

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Shell Size, MIL :

-

Current Rating (Amps) :

13A

Flammability Rating :

UL 94 V-0

Termination Style :

Solder

Brand :

Souriau

Connector Type :

Receptacle, Male Pins

Diameter :

19.15 mm

Series :

UTGX

Thread Size :

7/8-20 UNEF

Mounting Angle :

Straight

Contact Finish - Mating :

-

Contact Material :

Brass

Fastening Type :

Bayonet Lock

Housing Gender :

FEMALE

Primary Material :

Plastic

Operating Temperature :

-40°C ~ 105°C

RoHS :

Details

Manufacturer :

Souriau

Number of Contacts :

4

Shell Style :

Jam Nut

IP Rating :

IP65, IP67, IP69K

Contact Gender :

Pin (Male)

Mating Cycles :

500 Cycles

Package :

Bag

Shielding :

Unshielded

Color :

Black

Shell Finish :

-

Backshell Material, Plating :

-

Mating Style :

Bayonet

Mounting Type :

Panel Mount

Contact Plating :

-

Insert Material :

Polychloroprene

Termination :

Solder Cup

Shell Material :

Polyamide (PA), Nylon

Features :

UV Resistant

Termination Method :

Crimp

Mounting Style :

Panel

Subcategory :

Circular Connectors

Product Status :

Active

Current Rating :

13 A

Product Category :

Standard Circular Connector

Material Flammability Rating :

UL94 V-0

Orientation :

N (Normal)

Voltage Rating :

600V

Cable Opening :

-

Contact Finish Thickness - Mating :

-

Product Type :

Standard Circular Connector

Number of Positions :

4 (3 + PE)

Shell Size :

12

Wire Gauge :

16 AWG

Height :

31.75 mm
