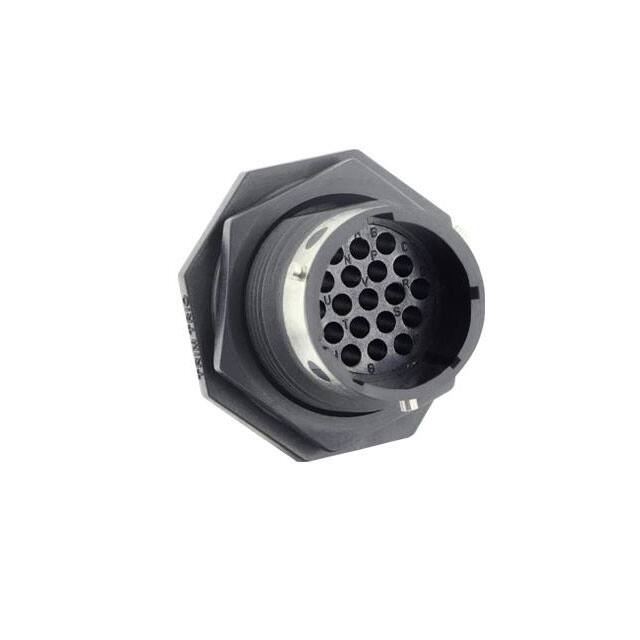

UTGX71419P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Contact Shape :

Circular

Thread Size :

1 in-20 UNEF

Series :

UTGX

Mounting Type :

Panel Mount

Orientation :

N (Normal)

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Subcategory :

Circular Connectors

Shell Size, MIL :

-

Height :

34.9 mm

Diameter :

22.31 mm

Operating Temperature :

-40°C ~ 105°C

Color :

Black

RoHS :

Details

Product :

Receptacles

Contact Gender :

Pin (Male)

Voltage Rating :

250 V

Manufacturer :

Souriau

Mating Style :

Bayonet

Termination Method :

Crimp

Wire Gauge :

20 AWG

Features :

UV Resistant

Shell Finish :

-

Accessory Type :

-

Note :

Contacts Not Included

Brand :

Souriau

Mounting Style :

Panel

Type :

For Male Pins

Housing Gender :

FEMALE

Housing Color :

Black

Connector Type :

Receptacle Housing

Mounting Feature :

Bulkhead - Front Side Nut

Shell Size - Insert :

14-19

Number of Positions :

19

Contact Type :

Crimp

Fastening Type :

Bayonet Lock

Package :

Bag

Contact Plating :

-

Current Rating :

4.5 A

Base Product Number :

UTGX7

Flammability Rating :

UL 94 V-0

Shell Material :

Polyamide (PA), Nylon

Includes :

3 pcs - 1 Connector, 1 Nut, 1 O-Ring

Product Type :

Standard Circular Connector

Mounting Angle :

Straight

Insert Material :

Polyamide (PA), Nylon

Termination Style :

Crimp

Contact Material :

Brass

Shell Style :

Jam Nut

Product Status :

Active

Contact Size :

20

Mating Cycles :

500 Cycles

IP Rating :

IP65, IP67, IP69K

Product Category :

Standard Circular Connector

Shell Size :

14

Shielding :

Unshielded

Material Flammability Rating :

UL94 V-0

Number of Contacts :

19
