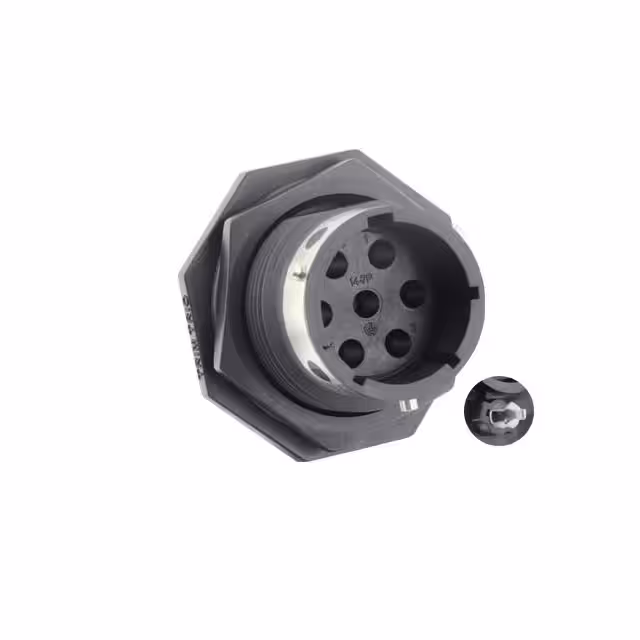

UTGX7147PSEK9

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Product Category :

Standard Circular Connector

Mounting Feature :

Bulkhead - Front Side Nut

Contact Gender :

Pin (Male)

Thread Size :

1 in-20 UNEF

Wire Gauge :

16 AWG

Flammability Rating :

UL 94 V-0

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

RoHS :

Details

Package :

Bag

Current Rating :

10 A

Shell Size - Insert :

14-7

Contact Plating :

Gold

Color :

Black

Termination Style :

Crimp

Series :

UTGX

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Manufacturer :

Souriau

Operating Temperature :

-40°C ~ 105°C

Fastening Type :

Bayonet Lock

Base Product Number :

UTGX7

Contact Material :

Brass

IP Rating :

IP65, IP67, IP69K

Shell Finish :

-

Product Type :

Standard Circular Connector

Primary Material :

Plastic

Features :

UV Resistant

Subcategory :

Circular Connectors

Mounting Angle :

Straight

Mounting Style :

Panel

Backshell Material, Plating :

-

Mounting Type :

Panel Mount

Contact Finish Thickness - Mating :

-

Number of Positions :

7 (6 + PE)

Connector Type :

Receptacle, Male Pins

Shell Style :

Jam Nut

Shell Size, MIL :

-

Shell Material :

Polyamide (PA), Nylon

Brand :

Souriau

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

-

Cable Opening :

-

Product Status :

Active

Insert Material :

Polyamide (PA), Nylon

Termination :

Crimp

Mating Style :

Bayonet

Orientation :

N (Normal)

Current Rating (Amps) :

10A

Mating Cycles :

500 Cycles

Voltage Rating :

500V

Shell Size :

14

Shielding :

Unshielded

Housing Gender :

FEMALE

Product :

Receptacles
