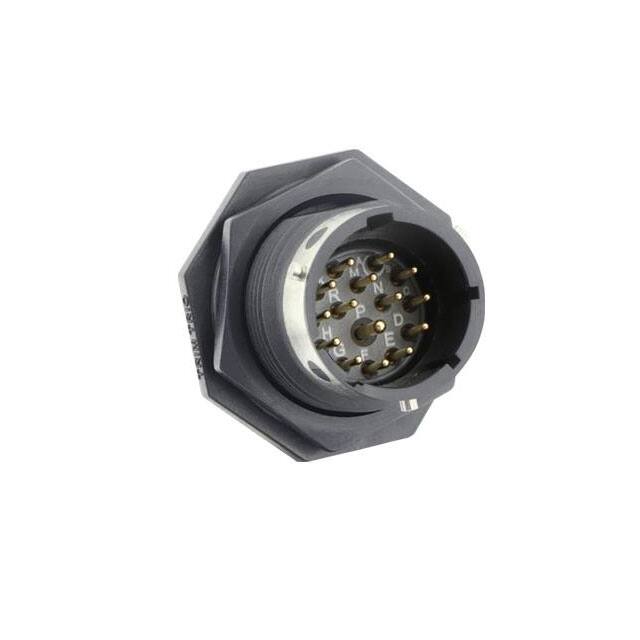

UTGX714D15P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Mounting Style :

Panel

Shell Finish :

-

RoHS :

Details

IP Rating :

IP65, IP67, IP69K

Flammability Rating :

UL 94 V-0

Termination :

Solder

Backshell Material, Plating :

-

Fastening Type :

Bayonet Lock

Shell Size - Insert :

14-15

Voltage Rating :

250V, 600V

Subcategory :

Circular Connectors

Features :

UV Resistant

Operating Temperature :

-40°C ~ 105°C

Product Type :

Standard Circular Connector

Product :

Receptacles

Brand :

Souriau

Shell Style :

Jam Nut

Current Rating (Amps) :

5A, 12A

Orientation :

N (Normal)

Mating Cycles :

500 Cycles

Number of Positions :

15 (Power)

Color :

Black

Housing Gender :

FEMALE

Contact Finish Thickness - Mating :

-

Mounting Angle :

Straight

Cable Opening :

-

Connector Type :

Receptacle, Male Pins

Series :

UTGX

Mounting Type :

Panel Mount, Through Hole

Contact Material :

Brass

Product Status :

Active

Contact Gender :

Pin (Male)

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Insert Material :

Polychloroprene

Mating Style :

Bayonet

Material Flammability Rating :

UL94 V-0

Product Category :

Standard Circular Connector

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Package :

Bag

Shell Size, MIL :

-

Shell Material :

Polyamide (PA), Nylon

Base Product Number :

UTGX7

Shell Size :

14

Manufacturer :

Souriau

Termination Style :

Solder

Mounting Feature :

Bulkhead - Front Side Nut

Thread Size :

1 in-20 UNEF

Shielding :

Unshielded

Contact Plating :

Gold

Current Rating :

+/- 5 A, +/- 12 A

Primary Material :

Plastic

Contact Finish - Mating :

-
