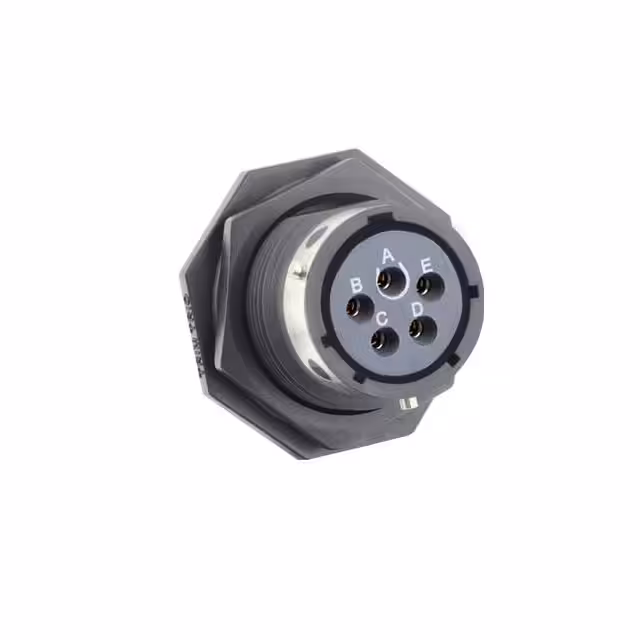

UTGX714D5S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Shell Size :

14

IP Rating :

IP65, IP67, IP69K

Shell Size - Insert :

14-5

Contact Material :

Brass

Product :

Receptacles

Product Status :

Active

Mounting Feature :

Bulkhead - Front Side Nut

Backshell Material, Plating :

-

Brand :

Souriau

Shell Finish :

-

Series :

UTGX

Fastening Type :

Bayonet Lock

Mating Cycles :

500 Cycles

Mounting Type :

Panel Mount, Through Hole

Shell Size, MIL :

-

RoHS :

Details

Operating Temperature :

-40°C ~ 105°C

Termination :

Solder

Shielding :

Unshielded

Shell Style :

Jam Nut

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Features :

UV Resistant

Product Type :

Standard Circular Connector

Material Flammability Rating :

UL94 V-0

Insert Material :

Polychloroprene

Base Product Number :

UTGX7

Flammability Rating :

UL 94 V-0

Voltage Rating :

600V

Wire Gauge :

16 AWG

Orientation :

N (Normal)

Primary Material :

Plastic

Current Rating (Amps) :

12A

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Product Category :

Standard Circular Connector

Number of Positions :

5

Connector Type :

Receptacle, Female Sockets

Shell Material :

Polyamide (PA), Nylon

Cable Opening :

-

Contact Plating :

Gold

Mounting Style :

Panel

Manufacturer :

Souriau

Current Rating :

12 A

Color :

Black

Mounting Angle :

Straight

Contact Finish Thickness - Mating :

-

Contact Finish - Mating :

-

Package :

Bag

Subcategory :

Circular Connectors

Mating Style :

Bayonet

Housing Gender :

FEMALE

Contact Gender :

Socket (Female)

Thread Size :

1 in-20 UNEF

Termination Style :

Solder
