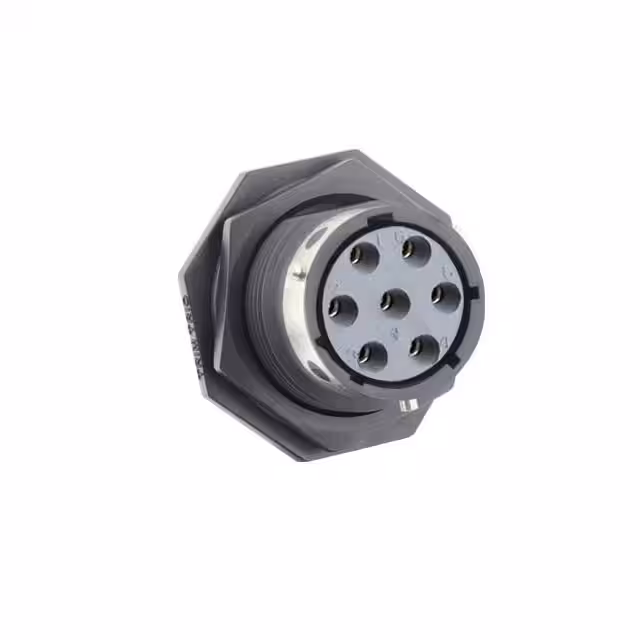

UTGX714D7S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Shielding :

Unshielded

Features :

UV Resistant

Product Category :

Standard Circular Connector

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Housing Gender :

FEMALE

Shell Size - Insert :

14-7

Fastening Type :

Bayonet Lock

Subcategory :

Circular Connectors

Mounting Feature :

Bulkhead - Front Side Nut

Mounting Type :

Panel Mount, Through Hole

Brand :

Souriau

Contact Plating :

Gold

Contact Finish - Mating :

-

Cable Opening :

-

Mounting Style :

Panel

Shell Size :

14

Material Flammability Rating :

UL94 V-0

RoHS :

Details

Number of Positions :

7 (6 + PE)

Primary Material :

Plastic

Current Rating :

12 A

Base Product Number :

UTGX7

Backshell Material, Plating :

-

Shell Style :

Jam Nut

Wire Gauge :

16 AWG

Termination Style :

Solder

IP Rating :

IP65, IP67, IP69K

Shell Material :

Polyamide (PA), Nylon

Product Status :

Active

Contact Finish Thickness - Mating :

-

Insert Material :

Polychloroprene

Mating Style :

Bayonet

Color :

Black

Contact Gender :

Socket (Female)

Product Type :

Standard Circular Connector

Termination :

Solder

Mating Cycles :

500 Cycles

Current Rating (Amps) :

12A

Voltage Rating :

600V

Product :

Receptacles

Package :

Bag

Shell Finish :

-

Mounting Angle :

Straight

Thread Size :

1 in-20 UNEF

Contact Material :

Brass

Shell Size, MIL :

-

Orientation :

N (Normal)

Operating Temperature :

-40°C ~ 105°C

Series :

UTGX

Flammability Rating :

UL 94 V-0

Manufacturer :

Souriau

Connector Type :

Receptacle, Female Sockets

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof
