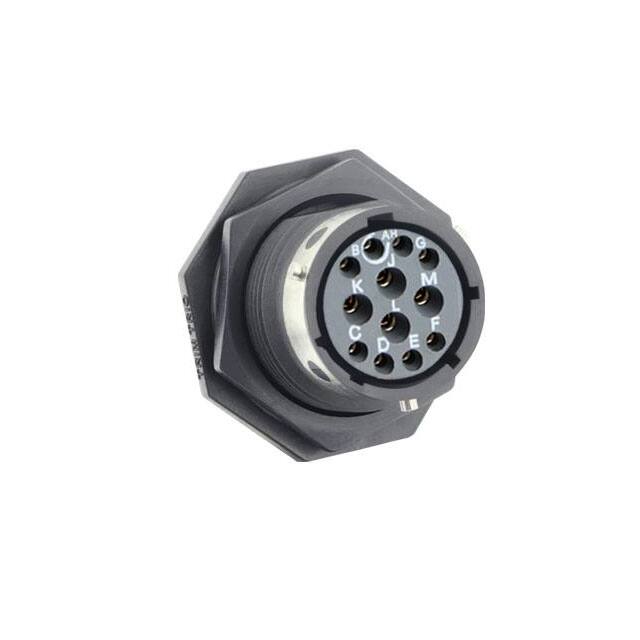

UTGX714E12S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Base Product Number :

UTGX7

Mating Style :

Bayonet

Mating Cycles :

500 Cycles

Product Status :

Active

Backshell Material, Plating :

-

Shell Size - Insert :

14-12

Mounting Style :

Panel

Flammability Rating :

UL 94 V-0

Orientation :

N (Normal)

Termination Style :

Solder

Primary Material :

Plastic

Shell Material :

Polyamide (PA), Nylon

Contact Finish Thickness - Mating :

-

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Termination :

Solder Cup

Voltage Rating :

250V, 600V

Product :

Receptacles

Features :

UV Resistant

Insert Material :

Polychloroprene

Mounting Feature :

Bulkhead - Front Side Nut

Shielding :

Unshielded

Product Type :

Standard Circular Connector

Package :

Bag

Subcategory :

Circular Connectors

Contact Finish - Mating :

-

Mounting Angle :

Straight

Color :

Black

Shell Size, MIL :

-

Current Rating (Amps) :

5A, 10A

Thread Size :

1 in-20 UNEF

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Contact Gender :

Socket (Female)

Number of Positions :

12 (Power)

Product Category :

Standard Circular Connector

Housing Gender :

FEMALE

Shell Style :

Jam Nut

Contact Material :

Brass

Contact Plating :

Gold

Fastening Type :

Bayonet Lock

Connector Type :

Receptacle, Female Sockets

Mounting Type :

Panel Mount

Brand :

Souriau

Manufacturer :

Souriau

Series :

UTGX

Cable Opening :

-

Shell Finish :

-

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C ~ 105°C

Shell Size :

14

RoHS :

Details

IP Rating :

IP65, IP67, IP69K

Current Rating :

+/- 5 A, +/- 10 A
