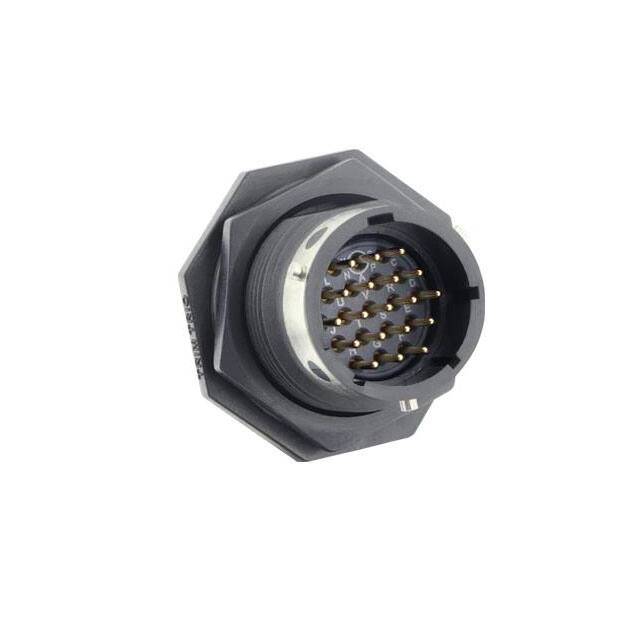

UTGX714E19P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Shell Finish :

-

Fastening Type :

Bayonet Lock

Mounting Feature :

Bulkhead - Front Side Nut

Brand :

Souriau

Features :

UV Resistant

Mating Cycles :

500 Cycles

Number of Contacts :

19

Voltage Rating :

250V

Product Type :

Standard Circular Connector

Diameter :

22.31 mm

Backshell Material, Plating :

-

Insert Material :

Polychloroprene

Material Flammability Rating :

UL94 V-0

Shell Size :

14

Contact Plating :

-

Cable Opening :

-

Base Product Number :

UTGX7

Shell Size, MIL :

-

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Contact Finish - Mating :

-

Shell Style :

Jam Nut

Accessory Type :

-

Mating Style :

Bayonet

Operating Temperature :

-40°C ~ 105°C

Contact Finish Thickness - Mating :

-

Package :

Bag

Connector Type :

Receptacle, Male Pins

Wire Gauge :

20 AWG

Mounting Angle :

Straight

Manufacturer :

Souriau

Product :

Receptacles

Thread Size :

1 in-20 UNEF

Current Rating (Amps) :

4A

Termination Style :

Solder

Product Category :

Standard Circular Connector

Shell Material :

Polyamide (PA), Nylon

Contact Gender :

Pin (Male)

Product Status :

Active

Housing Gender :

FEMALE

Shielding :

Unshielded

Mounting Type :

Panel Mount

RoHS :

Details

Contact Material :

Brass

Subcategory :

Circular Connectors

Termination Method :

Solder

Flammability Rating :

UL 94 V-0

Termination :

Solder Cup

Primary Material :

Plastic

Color :

Black

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Height :

34.9 mm

Current Rating :

4 A

Number of Positions :

19

Orientation :

N (Normal)

Series :

UTGX

Mounting Style :

Panel

IP Rating :

IP65, IP67, IP69K
