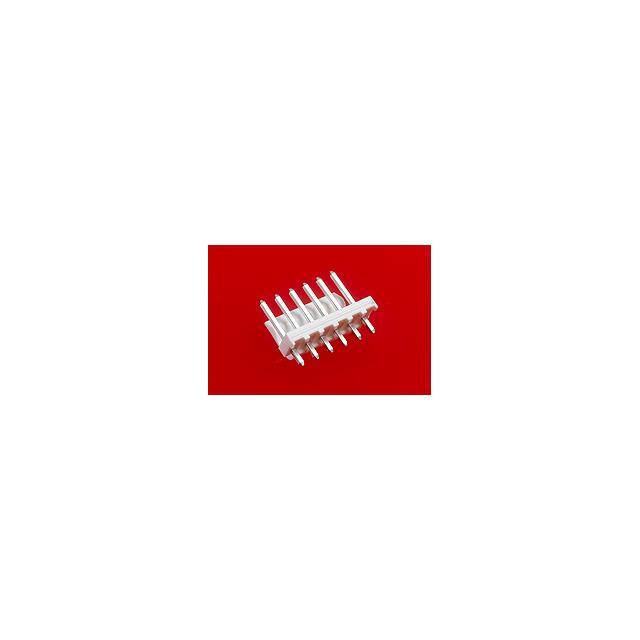

41791-0837

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Material :

Brass

Voltage Rating :

250 V

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Total Number of Contacts :

7

Gender :

HDR

Current Rating (Max) :

7/Contact(A)

Product Category :

Headers and Wire Housings

Application :

Power

Contact Plating :

Gold

MIL Conformance :

No

Mating Post Length :

11.43 mm

Tradename :

KK

Number of Contacts :

7(POS)

Series :

41791

Flammability Rating :

UL 94 V-0

DIN Conformance :

No

Number of Contact Rows :

1

Product :

Headers

RoHS :

Details

Additional Feature :

Friction Lock

Mixed Contacts :

No

Subcategory :

Headers and Wire Housings

Pitch (mm) :

3.96(mm)

Contact Gender :

Pin (Male)

Manufacturer :

Molex

Pitch :

3.96 mm

Product Height (mm) :

14.73(mm)

Termination Style :

Solder Pin

Product Depth (mm) :

10.01(mm)

Orientation :

Vertical

Operating Temp Range :

-40C to 80C

Product Length (mm) :

27.58(mm)

Mounting Style :

Through Hole

Product Type :

Headers and Wire Housings

Housing Material :

Polyester

Contact Resistance Max :

10(mohm)

Number of Positions :

7 Position

IEC Conformance :

No

Filter Feature :

No

Housing Color :

Natural

Type :

Wire to Board

Accessory Type :

-

Termination Post Length :

3.56 mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body Orientation :

Straight

Termination Method :

Solder

Mounting Type :

BOARD

Voltage Rating Max :

250V

Terminal Pitch :

3.96 mm

Termination Type :

Solder

Flammability :

94V-0

Package :

Box

Number of Rows :

1 Row

Current Rating :

7 A

Mounting Angle :

Straight

Reach Compliance Code :

Compliant

Pbfree Code :

yes

Contact Type :

-

Connector Type :

BOARD CONNECTOR

Product Status :

Active

Row Spacing :

-

Brand :

Molex

Packaging :

Bag
