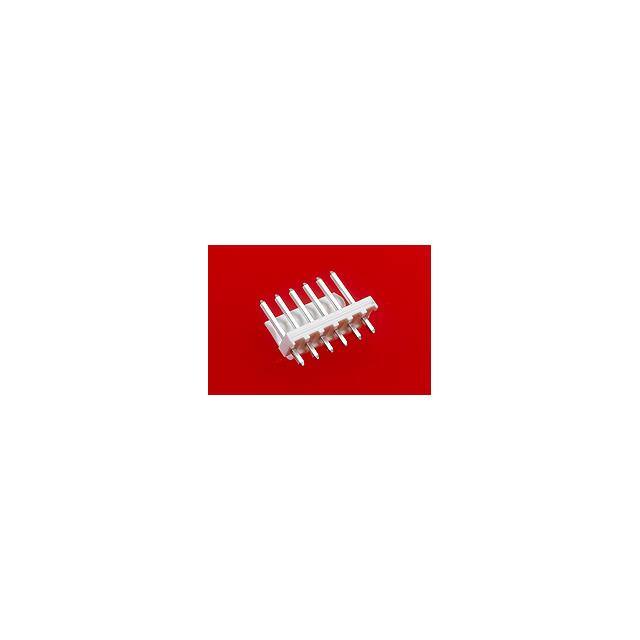

41791-0839

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Orientation :

Vertical

Package :

Box

Operating Temp Range :

-40C to 80C

Length :

35.51 mm

Option :

GENERAL PURPOSE

Brand :

Molex

Number of Rows :

1 Row

Pbfree Code :

yes

Max Operating Temperature :

75 °C

Mounting Style :

Through Hole

Mating Post Length :

11.43 mm

Product Category :

Headers and Wire Housings

Factory Lead Time :

10 Weeks

Contact Gender :

Pin (Male)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Country of Origin :

PR

Contact Material :

Brass

Number of Circuits :

8

Gender :

Header

Packaging :

Bag

Termination Style :

Solder Pin

Tradename :

KK

Number of Contact Rows :

1

Flammability :

94V-0

Contact Mating Length :

11.43 mm

Mixed Contacts :

No

Contact Resistance Max :

10(mohm)

Voltage Rating :

250 V

Pitch :

3.9600 mm

Product Length (mm) :

35.51(mm)

Total Number of Contacts :

9

RoHS :

Details

Housing Color :

Natural

Accessory Type :

-

Depth :

10.01 mm

Row Spacing :

-

Fastening Type :

Friction

Voltage Rating Max :

250V

Color :

Natural

Termination Method :

Solder

IEC Conformance :

No

Application :

Power

Pitch (mm) :

3.96(mm)

UL Flammability Code :

94V-0

Termination :

Solder

Mounting Type :

BOARD

Reach Compliance Code :

Compliant

Current Rating (Max) :

7/Contact(A)

Subcategory :

Headers and Wire Housings

Terminal Pitch :

3.96 mm

Current Rating :

7 A

Mounting Angle :

Straight

Mounting :

Through Hole

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Product Status :

Active

Min Operating Temperature :

0 °C

Number of Contacts :

9(POS)

Product Length :

35.51 mm

Product Height (mm) :

14.73(mm)

Number of Positions :

9 Position

MIL Conformance :

No

Filter Feature :

No

Termination Post Length :

3.56 mm

Contact Resistance :

6 mΩ

Housing Material :

Polyester

Product :

Headers

Lifecycle Status :

Production (Last Updated: 2 years ago)

DIN Conformance :

No

Product Type :

Headers and Wire Housings

Connector Type :

Male Pin

Contact Type :

-

Series :

41791

Additional Feature :

Friction Lock

Contact Plating :

Gold

Body Orientation :

Straight

Termination Type :

Solder

Operating Temperature :

0 to 75 °C

Type :

Wire to Board

Base/Housing Material :

Polyester

Mount :

Through Hole

Manufacturer :

Molex

Product Depth (mm) :

10.01(mm)

Flammability Rating :

UL 94 V-0
