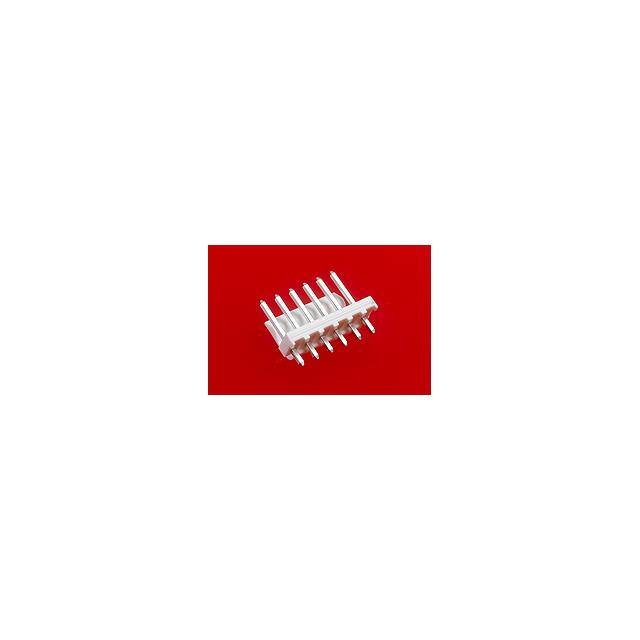

41791-1051

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Filter Feature :

No

Product Depth (mm) :

10.01(mm)

Mounting Type :

BOARD

Reach Compliance Code :

Compliant

Termination Style :

Solder Pin

Contact Material :

Brass

Type :

Wire to Board

Product :

Headers

Subcategory :

Headers and Wire Housings

Termination Type :

Solder

Mounting Style :

Through Hole

Body Orientation :

Straight

Maximum Operating Temperature :

+ 80 C

MIL Conformance :

No

Number of Positions :

7 Position

UL Flammability Code :

94V-0

Product Type :

Headers and Wire Housings

Additional Feature :

Friction Lock

Application :

Power, Wire-to-Board

Series :

41791

RoHS :

Details

Pitch :

3.96 mm

Contact Finish Termination :

Tin (Sn)

Mating Post Length :

11.43 mm

IEC Conformance :

No

Product Height (mm) :

14.73(mm)

Housing Color :

Natural

Pitch (mm) :

3.96(mm)

DIN Conformance :

No

Number of Contacts :

7(POS)

Tradename :

KK

Terminal Pitch :

3.96 mm

Contact Type :

-

Manufacturer :

Molex

Brand :

Molex

Termination Method :

Solder

Accessory Type :

-

Number of Contact Rows :

1

Mounting Angle :

Straight

Number of Rows :

1 Row

Product Length (mm) :

27.58(mm)

Product Category :

Headers and Wire Housings

Minimum Operating Temperature :

- 40 C

Mixed Contacts :

No

Termination Post Length :

3.56 mm

Package :

Bulk

Product Status :

Active

Option :

GENERAL PURPOSE

Contact Gender :

Pin (Male)

Gender :

HDR

Total Number of Contacts :

5

Connector Type :

BOARD CONNECTOR

Contact Plating :

Tin

JESD-609 Code :

e3

Housing Material :

Polyester
