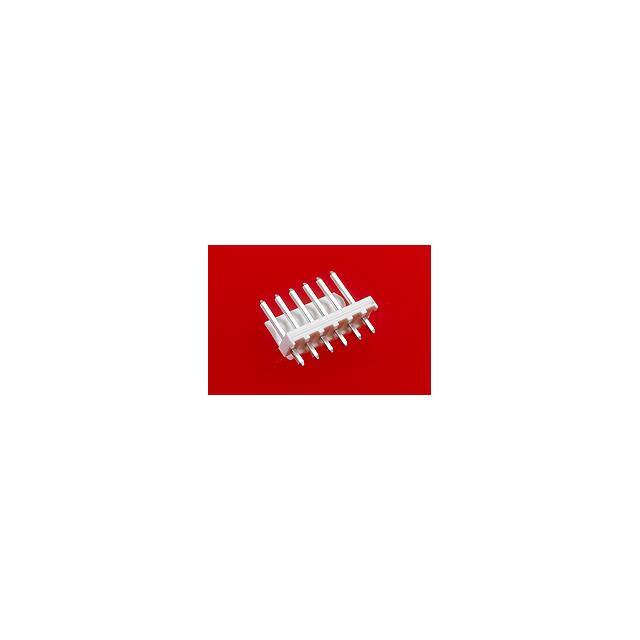

41791-0855

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Operating Temperature :

0 to 75 °C

Series :

41791

Additional Feature :

Friction Lock

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

HTS Code :

8536.69.40.40

Contact Type :

-

Mounting Style :

Through Hole

Housing Material :

Polyester

Packaging :

Bag

Connector Type :

BOARD CONNECTOR

JESD-609 Code :

e3

Subcategory :

Headers and Wire Housings

IEC Conformance :

No

Contact Material :

Brass

Type :

Wire to Board

DIN Conformance :

No

Pitch :

3.9600 mm

RoHS :

Details

MIL Conformance :

No

Number of Rows :

1 Row

Contact Finish Termination :

Tin (Sn)

Brand :

Molex

Pbfree Code :

yes

Number of Contacts :

8(POS)

Termination Method :

Solder

Product Category :

Headers and Wire Housings

Mixed Contacts :

No

Termination Type :

Solder

Flammability :

94V-0

Mounting :

Through Hole

Accessory Type :

-

Mating Post Length :

11.43 mm

Voltage Rating :

250 V

Product Status :

Active

Base/Housing Material :

Polyester

UL Flammability Code :

94V-0

Total Number of Contacts :

8

Body Orientation :

Straight

Flammability Rating :

UL 94 V-0

Product Height (mm) :

14.73(mm)

Current Rating :

7 A

Contact Resistance Max :

10(mohm)

Number of Positions :

8 Position

Filter Feature :

No

Mounting Type :

BOARD

Minimum Operating Temperature :

- 40 C

Orientation :

Vertical

Contact Gender :

Pin (Male)

Product :

Headers

Number of Contact Rows :

1

Terminal Pitch :

3.96 mm

Reach Compliance Code :

Compliant

Application :

Power

Product Depth (mm) :

10.01(mm)

Housing Color :

Natural

Voltage Rating Max :

250V

Option :

GENERAL PURPOSE

Maximum Operating Temperature :

+ 80 C

Operating Temp Range :

-40C to 80C

Package :

Box

Mounting Angle :

Straight

Current Rating (Max) :

7/Contact(A)

Pitch (mm) :

3.96(mm)

Product Type :

Headers and Wire Housings

Gender :

Header

Termination Style :

Solder Pin

Termination Post Length :

3.56 mm

Manufacturer :

Molex

Product Length (mm) :

31.55(mm)

ECCN Code :

EAR99

Contact Plating :

Gold

Tradename :

KK
