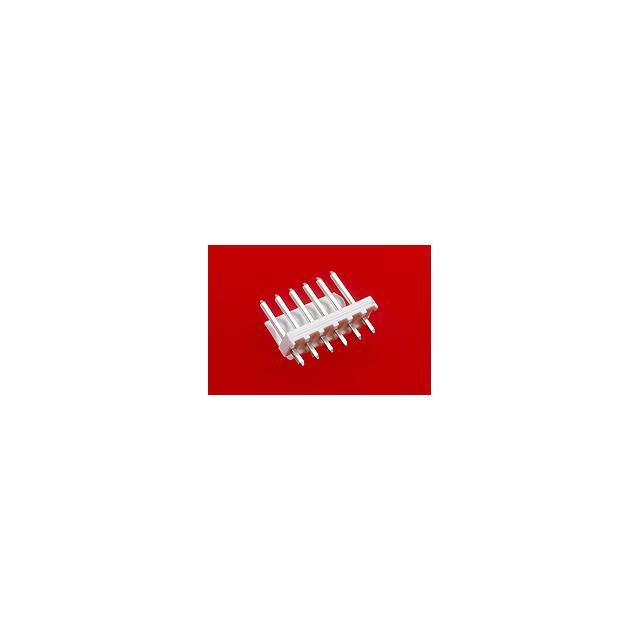

41791-0856

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination Type :

Solder

Termination Style :

Solder Pin

Packaging :

Bag

Pitch (mm) :

3.96(mm)

Number of Rows :

1 Row

Option :

GENERAL PURPOSE

Application :

Power

Contact Material :

Brass

Additional Feature :

Friction Lock

Pitch :

3.96 mm

Type :

Wire to Board

Connector Type :

BOARD CONNECTOR

Tradename :

KK

Body Orientation :

Straight

Product Status :

Active

Product Depth (mm) :

10.01(mm)

Total Number of Contacts :

9

Number of Contact Rows :

1

Terminal Pitch :

3.96 mm

Product :

Headers

Series :

*

Brand :

Molex

UL Flammability Code :

94V-0

Flammability Rating :

UL 94 V-0

Row Spacing :

-

Reach Compliance Code :

Compliant

DIN Conformance :

No

Housing Material :

Polyester

Package :

Box

Mounting Type :

BOARD

Contact Type :

-

Filter Feature :

No

Pbfree Code :

yes

RoHS :

Details

Product Length (mm) :

35.51(mm)

Current Rating (Max) :

7/Contact(A)

Termination Method :

Solder

Product Category :

Headers and Wire Housings

Voltage Rating Max :

250V

Mounting Style :

Through Hole

Operating Temp Range :

-40C to 80C

Contact Gender :

Pin (Male)

Mounting Angle :

Straight

Mating Post Length :

11.43 mm

Accessory Type :

-

Contact Resistance Max :

10(mohm)

Orientation :

Vertical

Product Height (mm) :

14.73(mm)

Manufacturer :

Molex

Gender :

HDR

Product Type :

Headers and Wire Housings

Mixed Contacts :

No

Contact Plating :

Gold

Number of Contacts :

9(POS)

Voltage Rating :

250 V

Housing Color :

Natural

MIL Conformance :

No

Number of Positions :

9 Position

IEC Conformance :

No

Termination Post Length :

3.56 mm

Flammability :

94V-0

Subcategory :

Headers and Wire Housings

Current Rating :

7 A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
