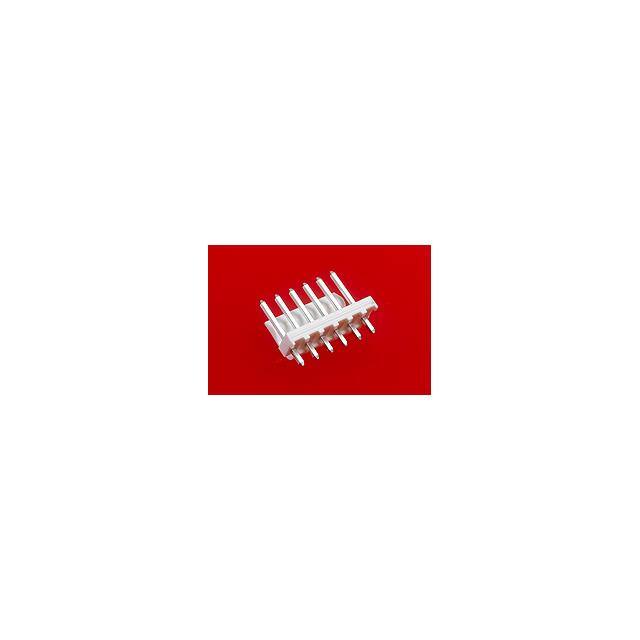

41791-0857

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Accessory Type :

-

Product Depth (mm) :

10.01(mm)

Contact Resistance Max :

10(mohm)

IEC Conformance :

No

UL Flammability Code :

94V-0

Lifecycle Status :

Production (Last Updated: 2 years ago)

Plating :

Tin

Termination :

Solder

Filter Feature :

No

Product Length (mm) :

39.47(mm)

Current Rating (Max) :

7/Contact(A)

Mounting Angle :

Straight

Tradename :

KK

Termination Style :

Solder Pin

Application :

Power

Termination Type :

Solder

Series :

41791

Gender :

Male

Voltage Rating Max :

250V

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Maximum Operating Temperature :

+ 80 C

MIL Conformance :

No

Pbfree Code :

yes

Glow Wire Compliant :

Non-Compliant

RoHS :

Compliant

Type :

Wire to Board

Product :

Headers

Total Number of Contacts :

10

Orientation :

Vertical

Number of Positions :

10

Min Operating Temperature :

0 °C

Mount :

Through Hole

Flammability Rating :

UL 94 V-0

Flammability :

94V-0

Option :

GENERAL PURPOSE

Housing Material :

Polyester

Product Category :

Headers and Wire Housings

Contact Material :

Brass

Body Orientation :

Straight

Contact Type :

-

Housing Color :

Natural

Connector Type :

BOARD CONNECTOR

Pitch :

3.96 mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Max Operating Temperature :

75 °C

Operating Temp Range :

-40C to 80C

Terminal Pitch :

3.96 mm

Minimum Operating Temperature :

- 40 C

Product Status :

Active

Subcategory :

Headers and Wire Housings

Current Rating :

7 A

Manufacturer :

Molex

Number of Circuits :

10

DIN Conformance :

No

Product Type :

Headers and Wire Housings

Package :

Box

Pitch (mm) :

3.96(mm)

Product Height (mm) :

14.73(mm)

Mounting Type :

BOARD

Additional Feature :

Friction Lock

Number of Contact Rows :

1

Mating Post Length :

11.43 mm

Brand :

Molex

Reach Compliance Code :

Compliant

Contact Gender :

Pin (Male)

Number of Contacts :

10

Mixed Contacts :

No

Contact Plating :

Gold

Packaging :

Bag

Termination Post Length :

3.56 mm

Voltage Rating :

250 V

Termination Method :

Solder

Mounting Style :

Through Hole

Country of Origin :

US

Number of Rows :

1
